Fluke 1550C Kit 5 kV Insulation Tester

Overview

The Fluke 1550C Kit is a complete 5 kV digital insulation testing solution designed for preventive and predictive maintenance. It automatically calculates Dielectric Absorption (DAR) and Polarization Index (PI), simplifying the identification of potential equipment failures before they occur. The kit includes everything needed for field operation.

Key Features

• 5 kV digital insulation testing capability
• Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI)
• Guard system eliminates surface leakage current effects on high-resistance measurements
• Selectable test voltages from 250 V to 5000 V
• CAT III 1000 V, CAT IV 600 V safety rating
• Line voltage warning function (up to 600 V detection)
• Up to 99 memory locations with user-defined labels
• Resistance measurements up to 2 TΩ
• Capacitance and leakage current measurement
• Ramp function for breakdown testing
• Timer settings up to 99 minutes
• Over 750 tests per charge
• Large digital/analog LCD display
• 3-year warranty

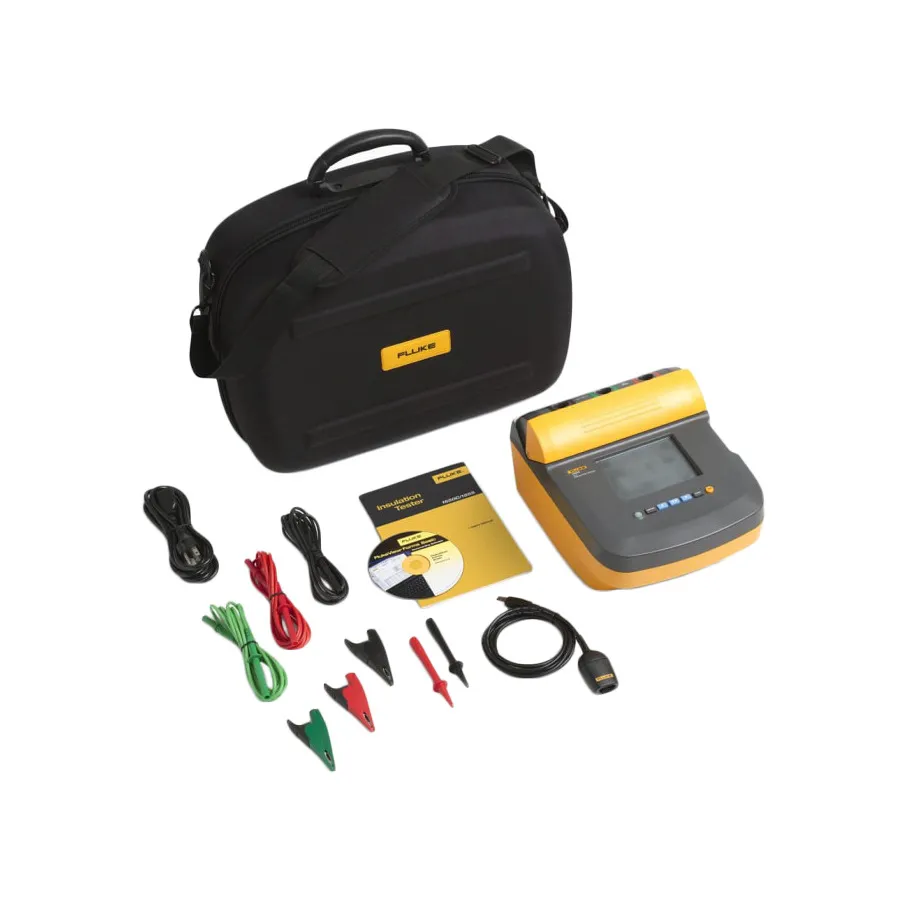

Kit Includes

• 1550C FC 5 kV Insulation Tester
• Test cables with alligator clips (red, black, green)
• Infrared adapter with interface cable
• AC power cord
• IP67 hard carrying case
• Certificate of Calibration
• Heavy duty alligator clip leads
• English manual and quick reference card
• Software license agreement

Applications

• Preventive maintenance testing of electrical equipment
• Predictive maintenance to identify potential failures
• Cable insulation diagnostics
• Transformer and motor insulation analysis
