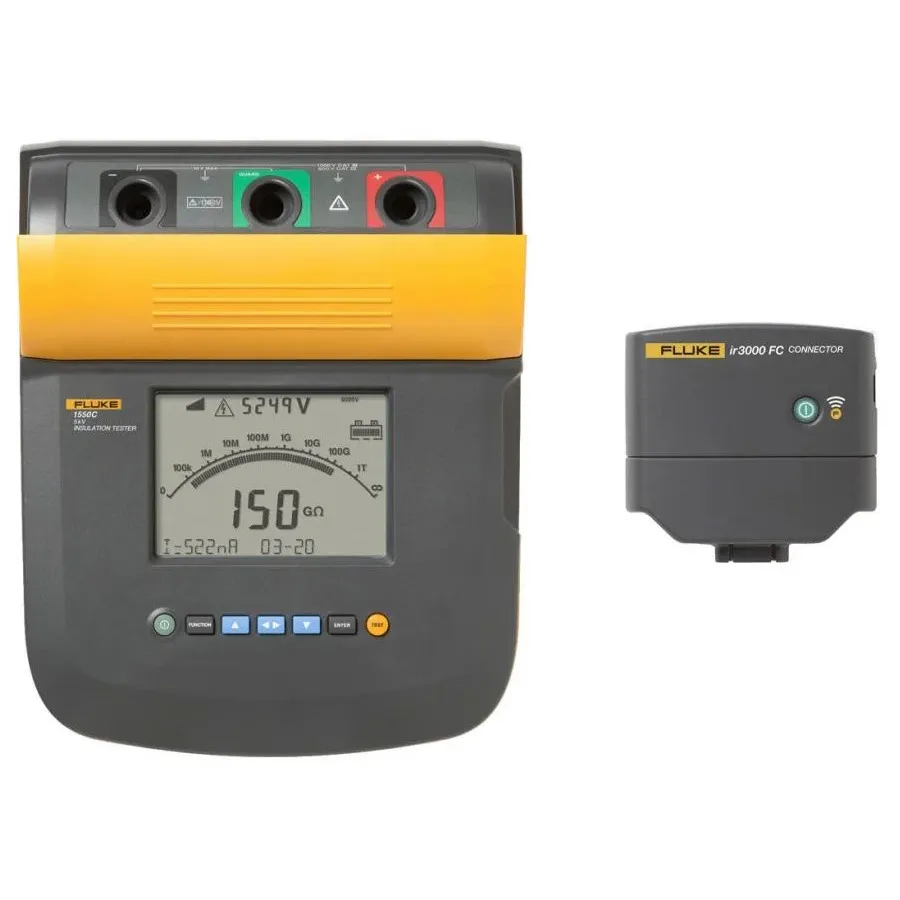

Fluke 1550C FC 5 kV Insulation Tester
Request a quote
Fluke 1550C FC 5 kV insulation tester with integrated IR 3000FC infrared adapter for thermal imaging capability and CAT IV 600V safety rating.
Product details
| Model | FLUKE-1550C FC |
| Manufacturer | Fluke |
| Category | Insulation Resistance & Megohmmeters |
| Availability | Made to order |
Description
Overview
The Fluke 1550C FC is a 5 kV digital insulation tester with integrated infrared (IR) connectivity via the 3000FC adapter. It is designed for preventive and predictive maintenance programs. The FC variant allows users to connect thermal imaging equipment for simultaneous electrical and thermal diagnostics.
Key Features
- 5 kV digital insulation testing
- Integrated IR 3000FC infrared adapter interface
- Automatic DAR and PI calculation
- Guard system for accurate high-resistance measurements
- Selectable test voltages from 250 V to 5000 V
- CAT III 1000 V, CAT IV 600 V safety rating
- Resistance measurements up to 2 TΩ
- Capacitance and leakage current measurement
- Up to 99 memory locations
- Fluke Connect wireless app integration
- Over 750 tests per charge
- 3-year warranty
Applications
- Combined electrical and thermal insulation diagnostics
- Predictive maintenance with thermal monitoring
- Electrical equipment commissioning and testing
Specifications
| Max Test Voltage | 5000 V |
| Max Resistance Measurement | 2 TΩ |
| Accuracy | ±1.5% or ±5 digits |
| Battery Life | Over 750 tests per charge |
| Memory Locations | 99 |
| Safety Rating | CAT III 1000V, CAT IV 600V |
| Operating Temperature | -10°C to 50°C |
| Warranty | 3 years |
