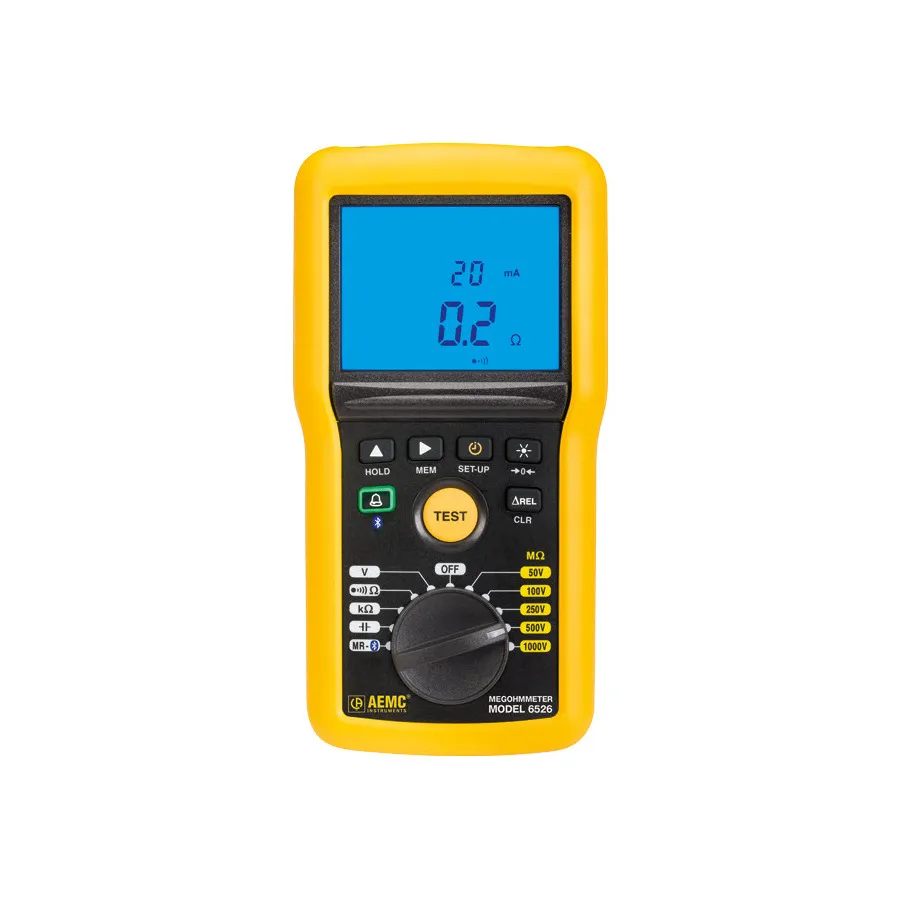

AEMC 6526 Megohmmeter

Overview

The AEMC 6526 is a digital megohmmeter designed for measuring insulation resistance on electrical cables, motors, pumps, transformers, and industrial equipment. With selectable test voltages ranging from 10V to 1000V and measurement capability up to 200 gigaohms, it is ideal for field testing and preventive maintenance.

Key Features

• Digital display with analog bargraph for ease of reading
• Selectable test voltages from 10V to 1000V (model dependent)
• Insulation resistance measurement up to 200 gigaohms (model dependent)
• Automatic discharge at test completion for safety
• PI and DAR ratio calculations for diagnostic testing
• Bluetooth connectivity with DataView software for data logging
• Active voltmeter to detect live voltage before testing
• Automatic test inhibition if voltage above 25V is detected
• Programmable alarms with Pass/Fail indication
• Manual, Lock, and Timer test modes
• 200mA/20mA continuity measurement with fuseless active protection
• Measures AC/DC voltage, frequency, ohms, kilohms, capacitance, and cable length (model dependent)
• Test lead compensation for accurate continuity measurements
• Data storage of test results (model dependent)

Applications

• Testing cables and cable insulation
• Testing small motors and pumps
• Testing transformers and industrial equipment
• Insulation measurement on communication cables and Ethernet cables
• Insulation measurement on electronic components and circuits
• Aerospace and defense applications requiring specific test voltages

Included Accessories

• Soft carrying pouch
• Two 1.5m test leads (red and black)
• Two alligator clips (red and black)
• Black test probe
• Six AA batteries
• Quick start guide
• USB stick with DataView software
• User manual
