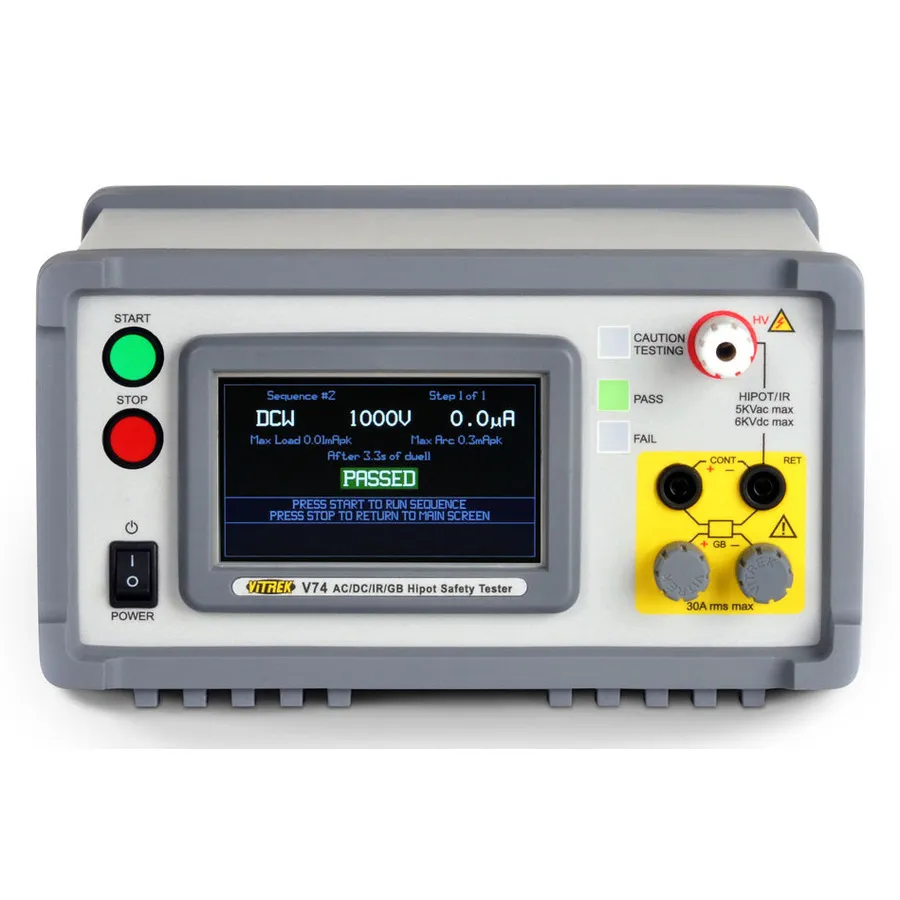

Vitrek V74 Hipot Tester
Request a quote
Vitrek V74 AC/DC/IR/GB Hipot Tester with 5 kVAC/DC output, ground bond to 30A, insulation resistance to 450GΩ, and leakage current to 100 nanoamps.
Product details
| Model | V74 |
| Manufacturer | Vitrek |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The Vitrek V74 is the flagship of the V7X series, offering the most comprehensive electrical safety testing capabilities with AC/DC Hipot, Insulation Resistance, and Ground Bond testing in one system. Designed and manufactured in the USA to meet UL, CSA, TUV, and IEC standards, it delivers high-speed DSP technology and a color touch LCD interface in a compact, fan-free design for complete production line compliance testing.
Key Features
- AC and DC Hipot testing to 5 kVAC/DC
- Insulation resistance testing to 450GΩ
- Ground bond testing to 30 amps (industry-leading current)
- Leakage current measurement to 100 nanoamps
- Color touch LCD with high-speed DSP processor
- Test memory: up to 999 steps and 60 sequences
- Internal self-test with automatic current verification
- 150µS safety shutdown
- Ramped discharge capability
- USB, RS232, and Digital I/O connectivity
- 2-year warranty
- Made in the USA (San Diego, CA)
Applications
- Complete electrical safety testing for AC/DC equipment
- UL, CSA, TUV, and IEC standard compliance verification
- Insulation resistance, leakage current, and ground bond assessment
- Comprehensive multi-function production line testing
Included Accessories
- TL-209 Test Lead Kit
- K-2R Ground Bond Adapter
- Power Cord
- Operating Manual
- QTPro-7 Software (45-day evaluation)
- NIST Traceable Calibration Certificate
Specifications
| AC Voltage | 5 kV |
| DC Voltage | 5 kV |
| Insulation Resistance Range | 450 G |
| Series | V7X Series |
| Function | AC, DC, IR, GB, LR |
