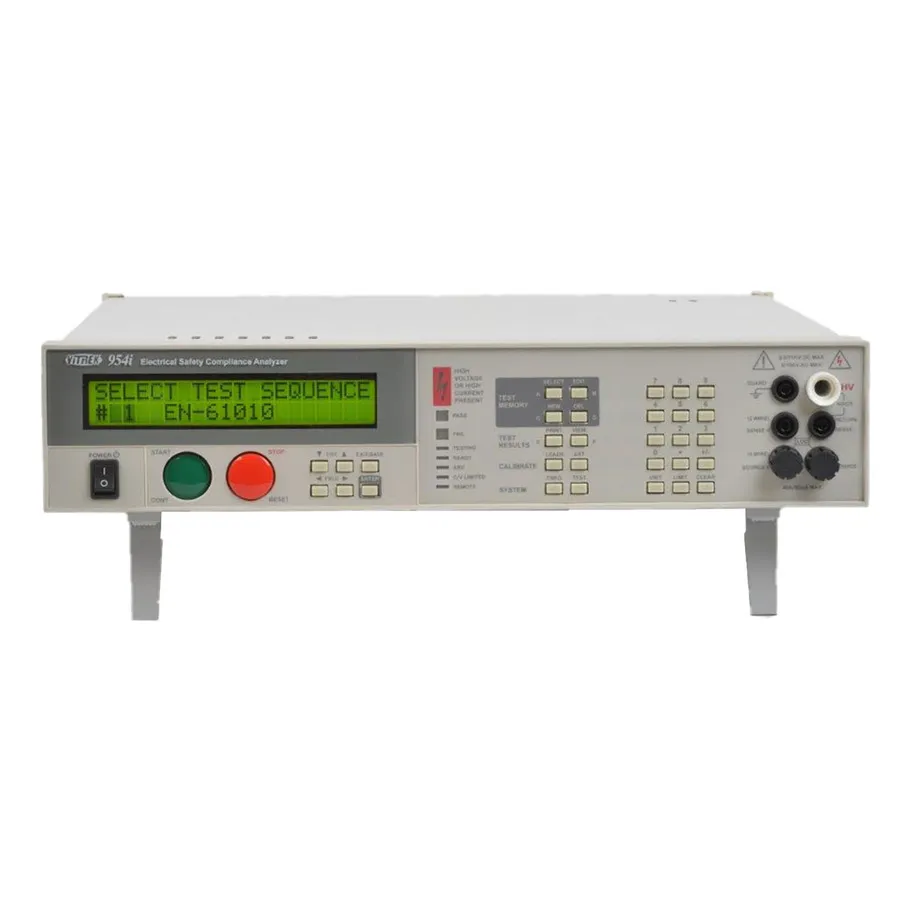

Vitrek 954i Ground Bond Hipot Tester

Overview

The Vitrek 954i is a DSP-based electrical safety compliance analyzer designed for high-performance dielectric and leakage current testing. It offers combined hipot, insulation resistance (IR), ground bond (GB), and leakage resistance (LR) capabilities in a single, compact instrument. The 954i delivers 11 kVDC/6 kVAC output with pico-amp resolution measurement and is ideal for demanding electrical safety test applications across multiple industries.

Key Features

• High-voltage output: 11 kVDC and 6 kVAC with up to 50mA sourcing current
• Ground Bond testing: 40A RMS capability with test times from 20mS to 1000+ seconds
• 4-wire milli-ohmmeter with range up to 100K ohms and 100µΩ resolution
• Insulation Resistance testing with multi-mode support and continuously variable test voltage (20V to 11kVDC)
• Phase angle measurement for resistive and reactive leakage current analysis
• Pico-amp resolution for ultra-low leakage detection and tera-ohm range IR measurements
• Dual Coldfire microprocessors with Dual DSPs for ramp rates up to 50kV/second and test times as fast as 3mS
• Expansive test sequence memory: up to 100 tests with 100 steps per test
• Test-specific fixture and cable compensation to eliminate offset errors
• Dual-dimensional arc detection with time and amplitude-based limits
• Multi-interface connectivity: Ethernet, RS232, Digital I/O, USB printer/scanner control; optional GPIB
• Optional HV scanner control for multi-point testing (up to 256-point switching)
• Operator safety features: GFI shutdown, Safety Fault Interlock (SFI), Test Lead Safety Sense (TLSS)
• Capacitance test modes for superior results on highly capacitive loads
• 400Hz AC testing for aviation-specific applications
• Three-year extended warranty available with annual factory calibration

Applications

• Electrical safety compliance testing (IEC, UL, CSA standards)
• High-voltage component and assembly testing
• Solar panel and photovoltaic system safety validation
• Avionic component testing with 400Hz AC support
• Multi-point production line testing with optional scanner
• Research and development of electrical devices
