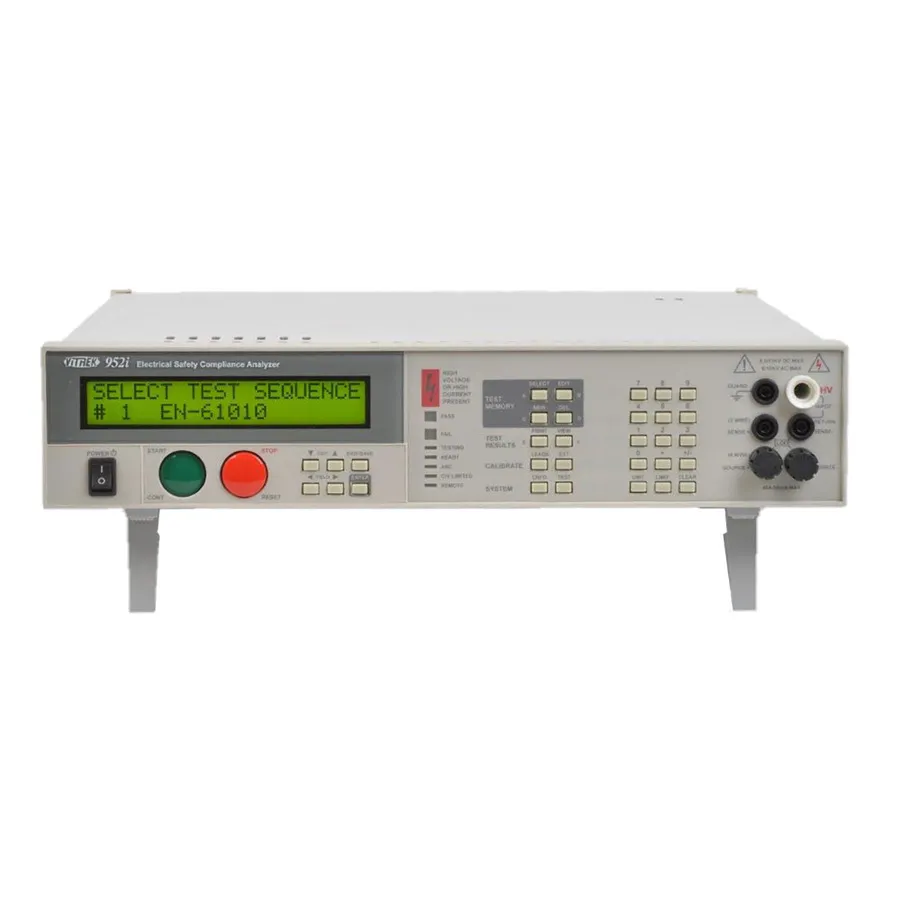

Vitrek 952i Ground Bond Hipot Tester

Overview

The Vitrek 952i is an ultra-high performance hipot tester from the DSP-based 95X series, featuring integrated 40A ground bond testing capability. It combines high output power with a wide range of AC and DC voltage outputs, extremely low leakage current measurement, and a 4-wire milli-ohmmeter with dynamic range up to 100K ohms. The 952i's ground bond feature enables comprehensive electrical safety testing with test times from 20 mS to 1000 seconds, making it ideal for multi-function production line testing.

Key Features

• AC Hipot voltage: 20V to 6 kVAC with selectable drive current capability
• DC Hipot and Insulation Resistance: 30V to 6.5 kVDC with up to 50 mA sourcing current
• 40A Ground Bond Testing: Output currents up to 40 Amps RMS with flexible test timing from 20 mS to 1000+ seconds
• 4-Wire Milli-Ohmmeter: Resolution down to 100 µΩ, range up to 100K ohms with 5-digit accuracy
• Pico-Amp Leakage Measurement for detection of minute defects and leakage levels
• Ramp rates up to 50 kV/second and dwell times as low as 20 mS
• Multi-dimensional arc detection with test-specific and broadband arc analysis
• High Voltage Scanner Control: Up to 256-point switching with available 964i HV Scanners for multi-point testing
• Advanced safety features including GFI shutdown, SFI Safety Fault Interlock, and TLSS Test Lead Safety Sense

Applications

• Electrical safety compliance testing per EN 61010-1 and EN 61326-1
• Ground continuity and bond integrity verification
• Dielectric breakdown and insulation resistance testing
• Solar panel and photovoltaic system defect detection
• Medical device electrical safety certification
• Automotive and industrial equipment production testing
• Multi-point hipot and ground bond testing with scanners
