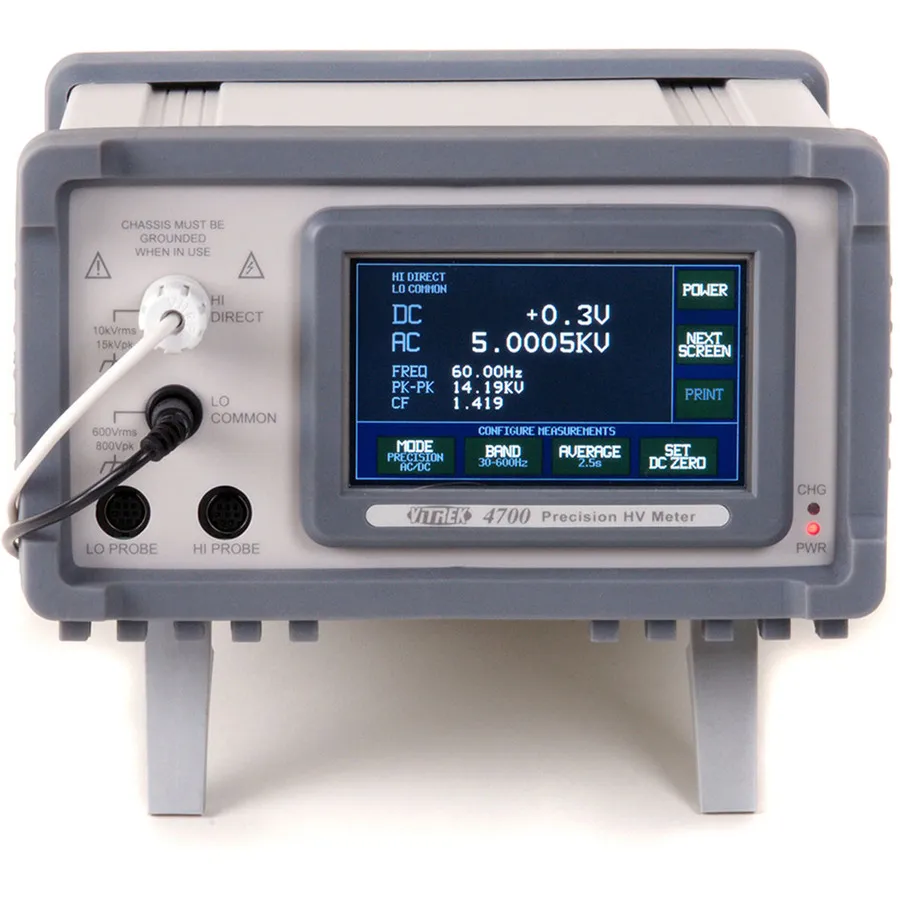

Vitrek 4700 High Voltage Meter and Hipot Tester
Request a quote
Vitrek 4700 is a precision high-voltage meter and hipot tester measuring up to 10kV directly and 35-150kV with optional SmartProbes, offering 0.03% DC and 0.1% AC true RMS accuracy.
Product details
| Model | 4700 |
| Manufacturer | Vitrek |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The Vitrek 4700 is a precision high-voltage meter and hipot tester designed for measuring and calibrating high-voltage power sources, insulators, and test equipment. It combines exceptional measurement accuracy with user-friendly operation and comprehensive connectivity options.
Key Features
- Measures up to 10kV directly; expandable to 35kV, 70kV, 100kV, or 150kV with optional SmartProbes
- Basic accuracy: 0.03% DC and 0.1% true RMS AC
- Large color touch screen for easy measurement selection and display
- Simultaneous AC and DC voltage readings with True RMS AC from 0.01Hz to 600Hz
- Dual probe inputs for differential or phase-to-phase measurements
- High-speed DSP provides up to 60 filtered readings per second
- AC noise rejection of 78dB for stable six-digit DC measurements
- Chart mode for graphic documentation of HV drift, ramp time, overshoot, and sag
- Multiple connectivity: Ethernet, serial, USB printer, and optional GPIB
- Optional battery pack for up to 11 hours of portable operation
- ISO 17025 accredited calibration included with all units and probes
- CE mark certified to EN61010 with three-year extended warranty
Applications
- Calibration of hipot testers and high-voltage power supplies
- Insulation tester calibration and verification
- High-voltage manufacturing and production testing
- Research and laboratory high-voltage measurements
- Quality assurance and compliance verification
Specifications
| Series | 4700 Series |
