SCI 297 Hipot Tester
Request a quote
SCI 297 hipot tester with 5 kVAC/12 mA and 6 kVDC/5 mA output, featuring programmable memories, USB interface, and remote I/O for automated safety testing.
Product details
| Model | 297 |
| Manufacturer | SCI |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview

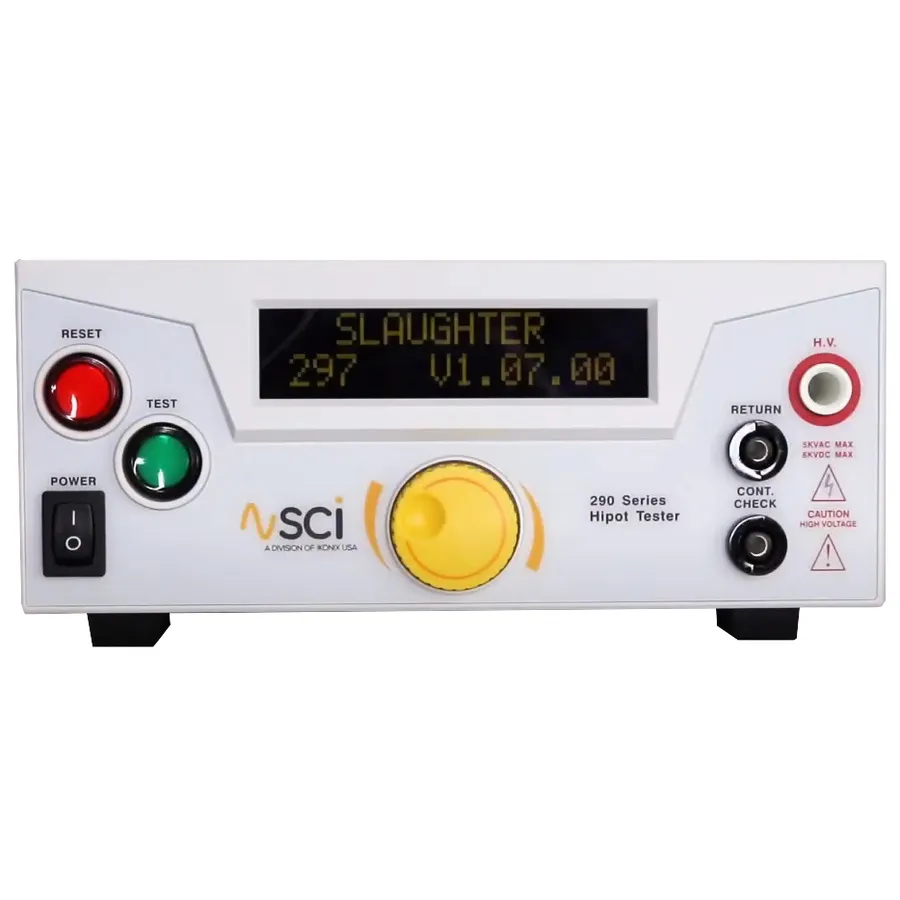

The SCI 297 is a high-voltage dielectric strength tester from the 290 Series. It offers AC and DC output modes with integrated safety interlocks and includes standard USB and remote I/O connectivity for automated production testing.
Key Features
- AC output: 0–5 kVAC at 12 mA
- DC output: 0–6 kVDC at 5 mA
- 5 programmable test memories with option to expand to 10
- USB port standard for data collection and control
- Remote I/O for automated testing (inputs: Test, Reset, Interlock; outputs: Pass, Fail, Test-in-Process)
- Redundant hardware safety interlock
- Tamper-proof front panel controls
- Portable, rugged design
- CE Listed
Applications
- Electrical safety certification and dielectric strength testing
- Production line quality assurance and component testing
- Compliance verification for manufactured equipment
- Automated testing systems with integrated USB and remote I/O
Specifications
| Series | 290 Series |
