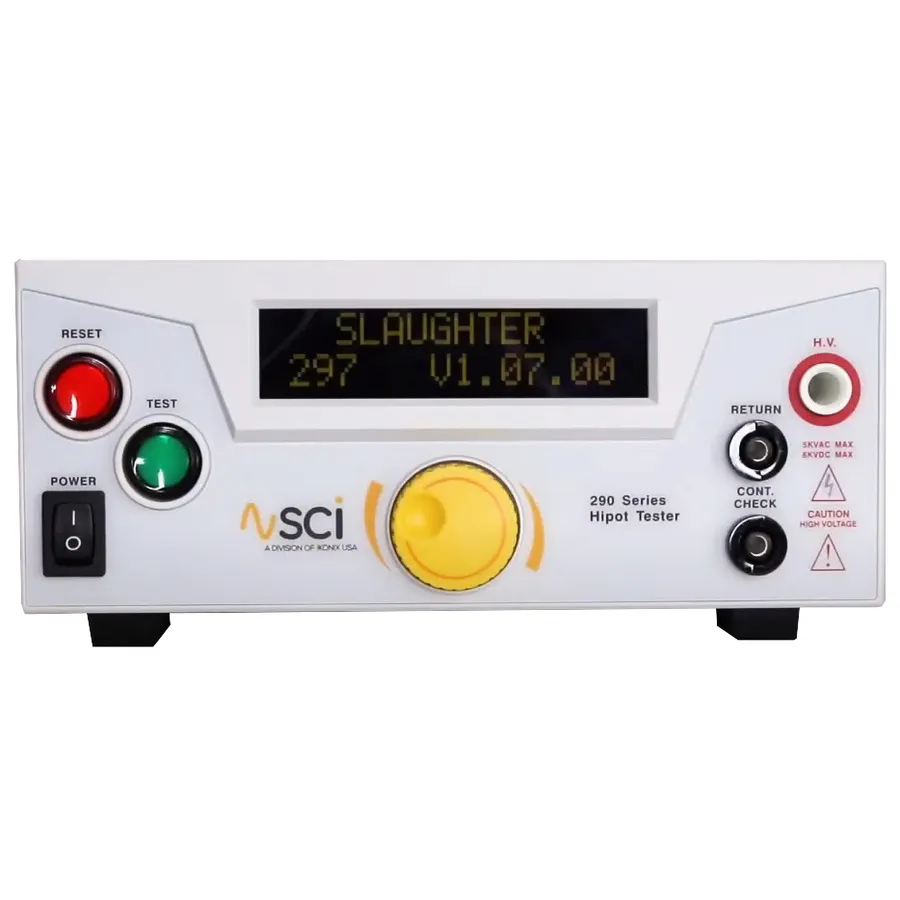

SCI 295 Hipot Tester
Request a quote
SCI 295 is an AC hipot tester with 0-5 kV output at 12 mA, featuring 5 programmable memories and USB interface option.
Product details
| Model | 295 |
| Manufacturer | SCI |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The SCI 295 is an AC hipot tester from the 290 Series, designed to simplify safety testing with an intuitive user interface and compact design. It provides AC testing up to 5 kV at 12 mA with programmable memories and optional data collection capabilities.
Key Features
- Output: AC 0-5.00 kVAC at 12.00 mA (50/60 Hz selectable)
- Input voltage: 100-120 VAC / 200-240 VAC ± 10% Auto Range
- 5 programmable memories with optional 10 memory upgrade
- Remote I/O for automated testing: Test, Reset, Interlock inputs; Pass, Fail, Test-in-Process outputs
- Tamper-proof front panel controls with redundant hardware safety interlock
- Portable, rugged design suitable for production line use
- Optional USB interface for PC control and data collection
- Optional Pulse Mode and Push to Test Mode for specialized applications
- CE Listed
Applications
- Electrical safety testing of industrial products
- Dielectric breakdown testing of insulation systems
- Automated production line testing
Specifications
| Series | 290 Series |
