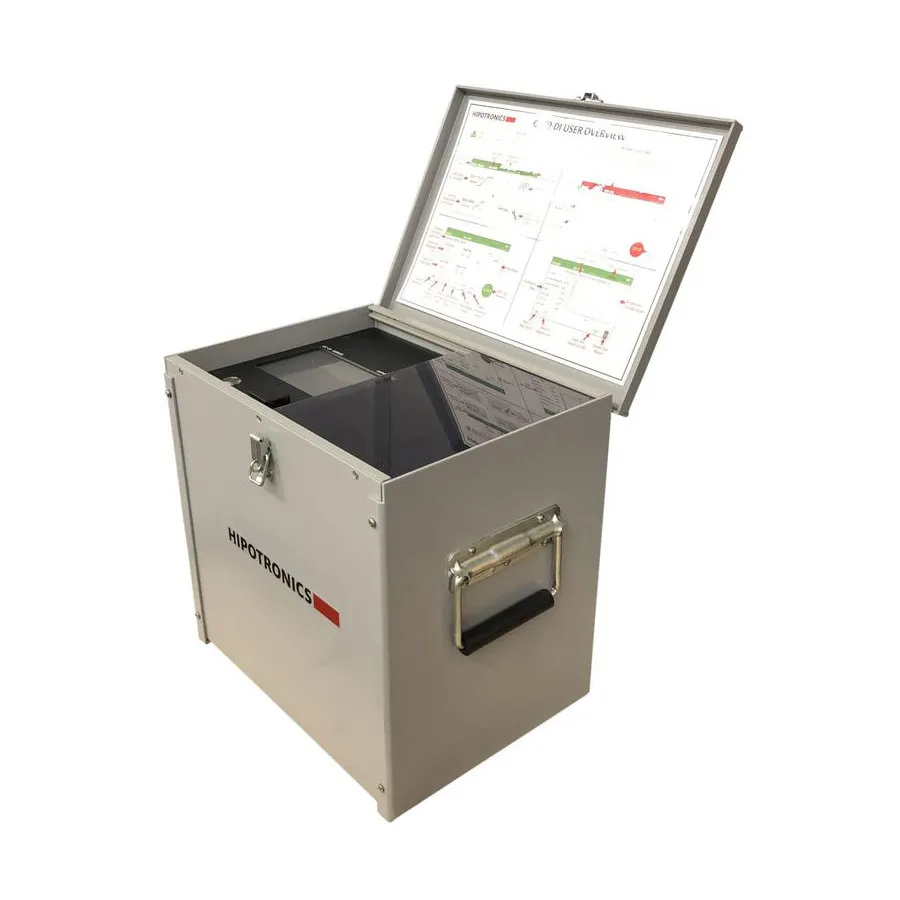

Hipotronics OC60P-DI Liquid Dielectric Tester with Printer
Request a quote
Hipotronics OC60P-DI is a portable 60kV liquid dielectric tester with ±2% accuracy, 7-inch touchscreen, battery operation, USB transfer, and built-in printer.
Product details
| Model | OC60P-DI |
| Manufacturer | Hipotronics |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The Hipotronics OC60P-DI Liquid Dielectric Tester accurately and reliably tests the dielectric strength of insulating liquids used in electrical apparatus. The rugged, lightweight, and portable design ensures safe and trouble-free operation in both field and laboratory environments. This model meets international testing specifications with test cells available for ASTM D877, ASTM D1816, and IEC 156 standards.
Key Features
- Breakdown voltage accuracy of ±2% of full scale
- Automatic breakdown detection within 4µs of breakdown point
- Digital kilovoltmeter with automatic breakdown voltage recording
- 7-inch color touchscreen display with adjustable brightness
- Pre-programmed test standards with custom mode capability
- Battery operated for field testing
- Built-in embedded printer for on-site reporting
- Data transfer and analysis via USB 2.0
- Adjustable test parameters: target voltage, ramp rate, dwell, and wait time
- Temperature and humidity measurement capabilities
- Safe operation with slide screen magnetic interlock
Applications
- Testing of insulating liquids in transformers and bushings
- Switchgear testing
- Capacitor testing
- Hydraulic fluid testing
Specifications
| Operating Modes | AC |
| AC Voltage | 60 kV |
| Number of Channels | Single Channel |
| Series | OC60 Series |
| Display | 7" Color Touchscreen |
| Includes | Input Cord, Calibration Certificate, Operations Manual, Printer |
| Input Voltage | 90-264 VAC |
| Interface | USB, WiFi |
