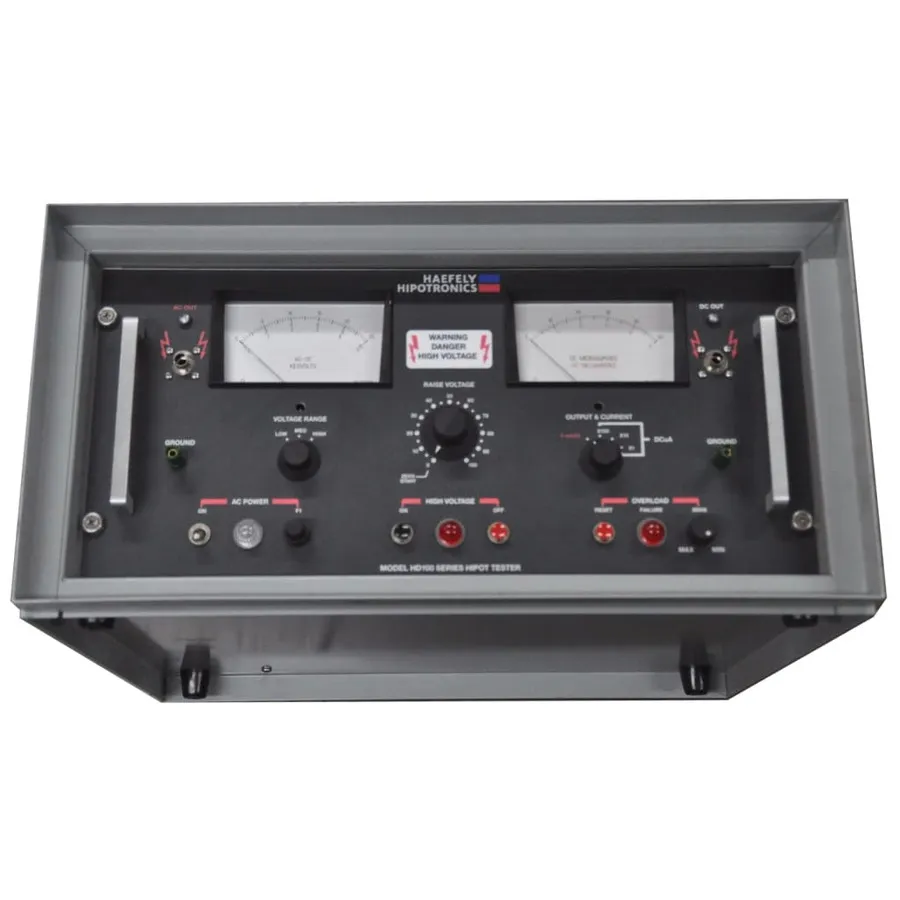

Hipotronics HD140-A Hipot Tester
Request a quote
Hipotronics HD140-A is an AC/DC hipot tester with 40kV DC and 15.5kV AC output, designed for production testing of electrical components to industry standards.
Product details
| Model | HD140-A |
| Manufacturer | Hipotronics |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The Hipotronics HD140-A is an AC/DC hipot tester designed for production testing of electrical units, systems, and components. This instrument combines both AC and DC testing capabilities in a single unit, eliminating the need to purchase separate hipots. The output-connected voltmeter ensures accurate voltage measurements regardless of output loading, and the unit is capable of testing to most industry specifications including UL, CSA, VDE, IEC, and MIL.
Key Features
- High-voltage AC/DC output: 0-15.5kV AC and 0-40kV DC
- Continuously adjustable test voltage from zero to rated voltage
- Zero start interlock for operator safety
- Adjustable overload from 10 to 110% of rated current output
- Audible and visual alarms for overload indication
- Automatic grounding when high voltage is turned off
- Meets UL, CSA, VDE, IEC, and MIL specifications
- Rack mountable in standard 19" rack
- Shielded output cable included
Applications
- Transformers
- Capacitors
- Wire and cable
- Motor windings
- Coils and inductors
- Connectors and cables
- Medical devices
- Industrial electrical components
Specifications
| Operating Modes | AC, DC |
| AC Voltage | 15.5 kV |
| DC Voltage | 40 kV |
| Number of Channels | Single Channel |
| Series | HD100 Series |
| Current | 5 mA |
| Includes | Power Cable with US plug, Test Lead Set |
| Input Voltage | 120 VAC |
