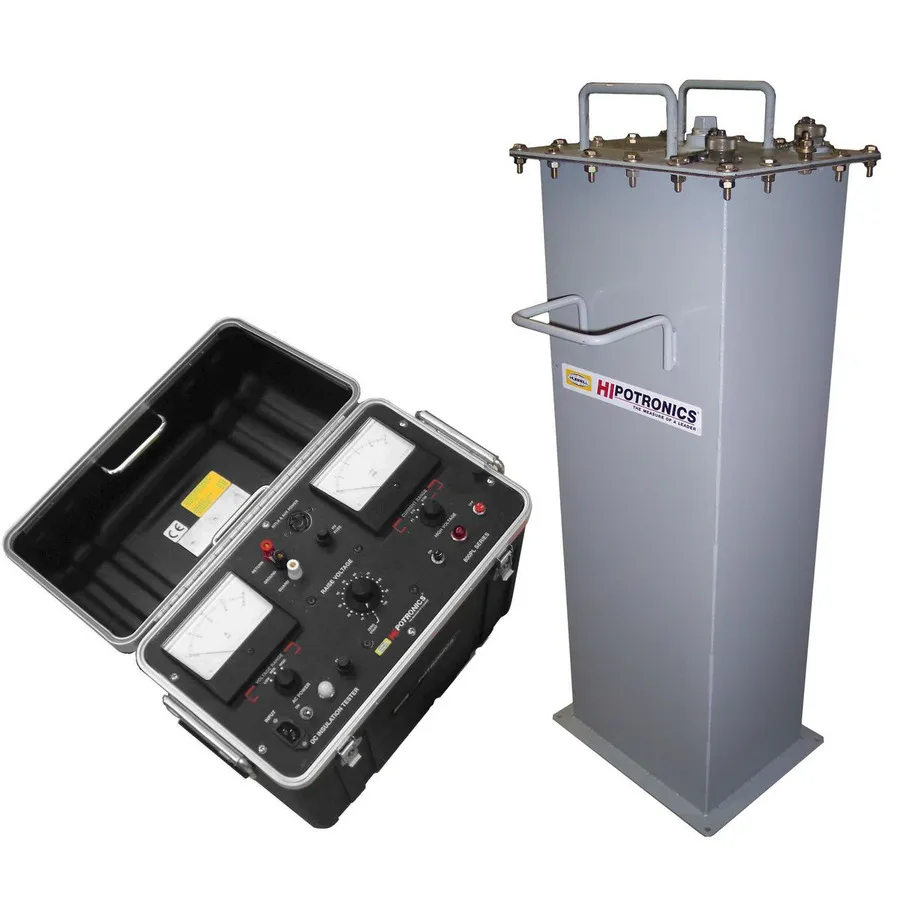

Hipotronics 8120-5PL-A DC Hipot Tester
Request a quote
Hipotronics 8120-5PL-A is a 120kV DC hipot tester with 5mA rating, featuring zero-start interlock, accurate kilovoltmeter readings, and rugged design for field testing of cables and electrical equi...
Product details
| Model | 8120-5PL-A |
| Manufacturer | Hipotronics |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The Hipotronics 8120-5PL-A is a DC hipot tester designed for field testing of cables, terminations, motors, generators, and other electrical apparatus. Part of the economical 800PL Series, this 120kV tester features a 5mA current rating in a rugged, self-contained enclosure complete with input cord and high-voltage output cable.
Key Features
- 120kV DC output voltage with 5mA current rating
- Accurate kilovoltmeter readings independent of load current
- Full-wave silicon rectifier circuit for stable output
- Zero start interlock and guard circuit for safety
- Internal discharge solenoid for safe shutdown
- Three-range voltage meter and four-range current meter
- Meter accuracy ±2% full scale
- Instantaneous overload relay for equipment protection
- Surge-limiting resistors in high-voltage output
- FR3 transformer oil for environmental safety
- Shielded output cable included
Applications
- Field testing of power cables and terminations
- Motor and generator insulation testing
- High-voltage dielectric strength verification
- Electrical apparatus safety validation
Specifications
| Operating Modes | DC, Output voltage, Leakage current |
| DC Voltage | 120 kV |
| Number of Channels | Single Channel |
| Series | 800 Series |
| Current | 5 mA |
| Display | 7" Color Touchscreen |
| Includes | Input Cord, 6 ft (1.8 m), Return Cable, 25 ft (7.6 m), Interlock Plug |
| Input Voltage | 120 VAC |
| Interface | USB, WiFi |
