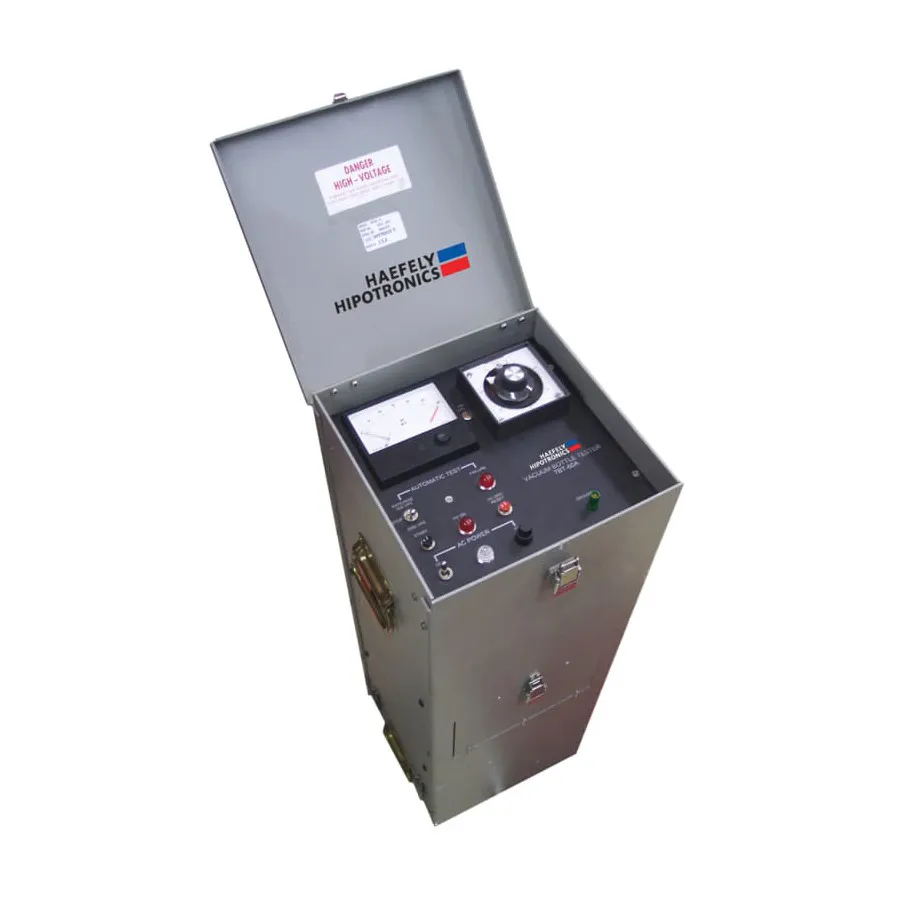

Hipotronics 7BT60-A AC Hipot
Request a quote
Hipotronics 7BT60-A is a portable 60kV AC dielectric hipot tester for testing vacuum interrupter integrity in switchgear.
Product details
| Model | 7BT60-A |
| Manufacturer | Hipotronics |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The Hipotronics model 7BT60-A is a portable 60kV AC center-tapped dielectric testing system designed to evaluate the integrity of vacuum interrupters in switchgear. The unit features automatic testing control with programmable voltage rise rate, dwell time, and automatic return to zero. A failure lamp indicates any breakdown during testing, while a memory kilovoltmeter records the breakdown voltage.
Key Features
- 0-60kV AC output voltage with center-tapped configuration
- Automatic testing operation with programmable parameters
- Preset rise time selections: 500 V/sec and 3000 V/sec
- Dwell timer for voltage duration control
- Memory kilovoltmeter to record breakdown voltage
- Failure indicator lamp on front panel
- Current limited to 10mA for operator safety
- Removable high voltage section for safety
- Rugged field case for portability
Applications
- Vacuum interrupter testing in switchgear
- Dielectric strength verification
- Preventive maintenance of electrical equipment
Specifications
| Operating Modes | AC |
| AC Voltage | 60 kV |
| Number of Channels | Single Channel |
| Series | 7BT60 Series |
| Current | 20 mA |
| Includes | Interconnect Cable, Test Leads, Power Cord, User's Manual, Calibration Certificate |
| Input Voltage | 120 VAC |
