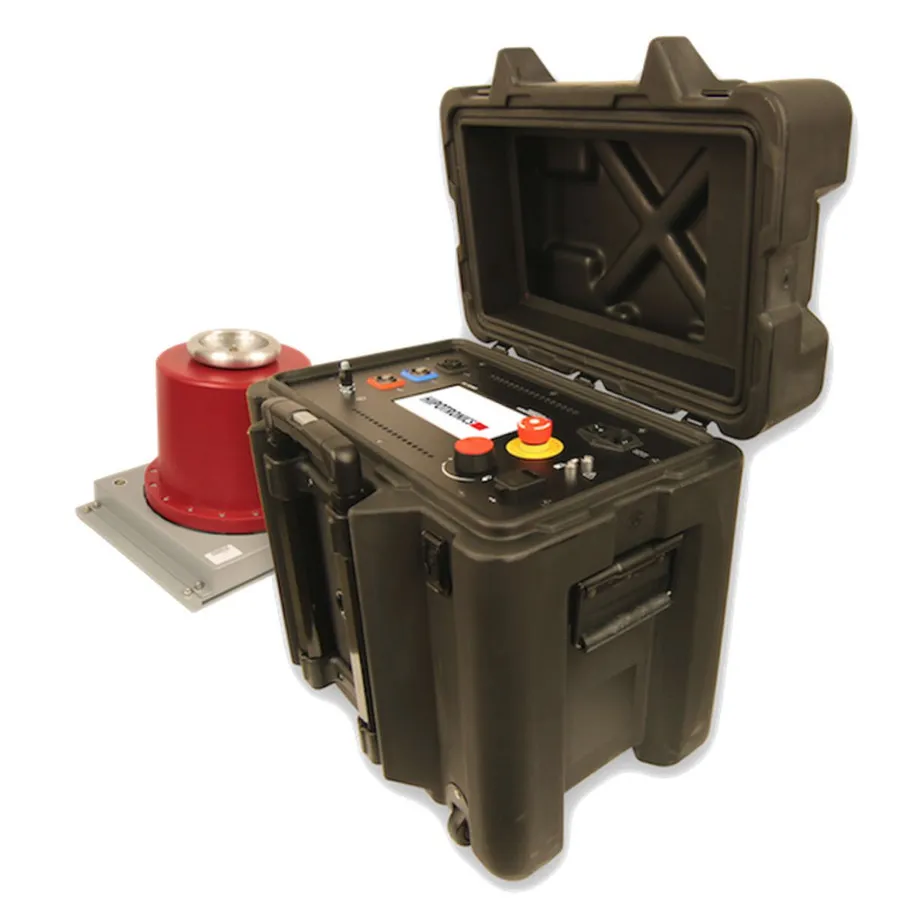

Hipotronics 60HVT-DI AC Hipot Tester
Request a quote
Hipotronics 60HVT-DI is a 60kV digital AC hipot tester with 7-inch touchscreen, USB connectivity, and IP67-rated case for field testing.
Product details
| Model | 60HVT-DI |
| Manufacturer | Hipotronics |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The Hipotronics 60HVT-DI is a portable 60kV digital AC hipot tester designed for insulation strength testing of electrical apparatus. Featuring a 7-inch touchscreen display, advanced safety features, and USB connectivity, it provides accurate voltage and current measurements with minimal setup time for both laboratory and field applications.
Key Features
- 60kV AC output with digital control and display
- 7-inch color touchscreen with adjustable brightness
- High-accuracy voltage and current measurement: ±1% of full scale
- Programmable test parameters: target voltage, maximum leakage, ramp rate, dwell time
- USB 2.0 connectivity and HIPODirect mobile app integration
- Guard circuit design eliminates stray leakage currents
- IP67-rated case with wheels and adjustable handle
- Universal mains-powered operation
- Meets ANSI/SIA A92.2 test specifications
- Minimal setup time with simple control panel
Applications
- Electrical apparatus insulation strength testing
- Field and portable testing operations
- Work platform and bucket truck insulation verification
- General high-voltage equipment testing
Specifications
| Operating Modes | AC, Output Voltage, Leakage Current, Impedance, Phase Angle |
| AC Voltage | 60 kV |
| Number of Channels | Single Channel |
| Series | HVT-DI Series |
| Current | 10 mA |
| Display | 7" Color Touchscreen |
| Includes | Interconnect cable with clamp, return cable, ground cable, power cord, Interlock plug, Voltmeter probe, USB drive with manual, Calibration certificate |
| Input Voltage | 90-265 VAC |
| Interface | USB, WiFi |
