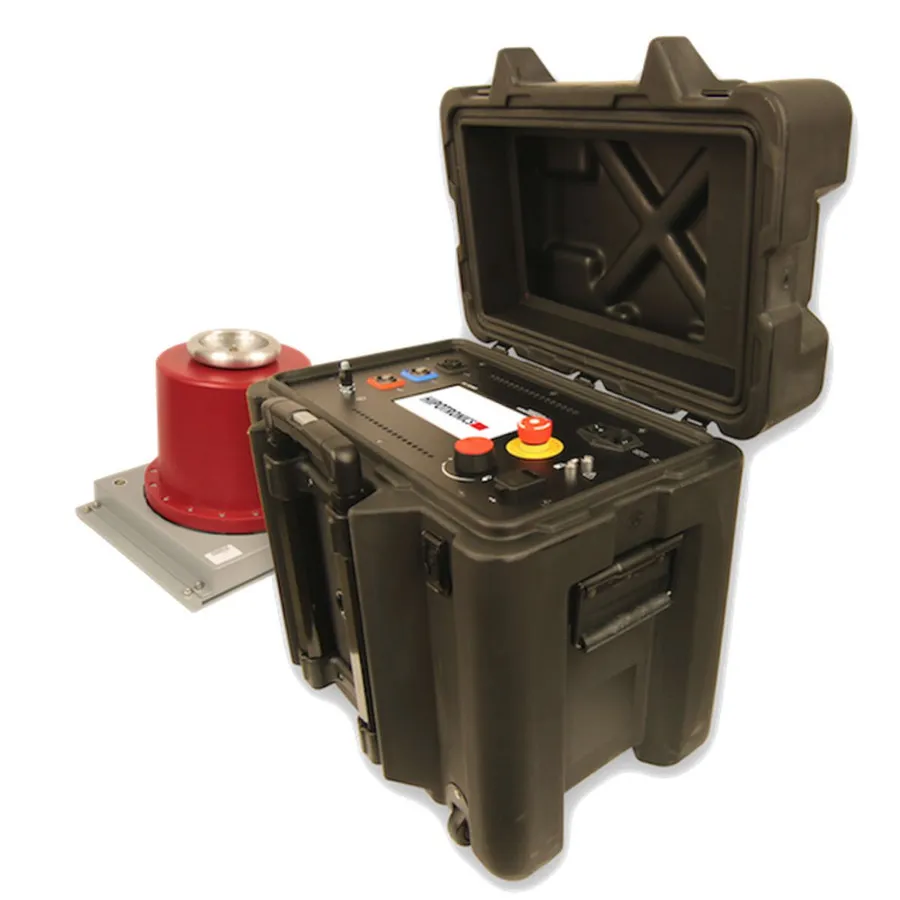

Hipotronics 30HVT-DI AC Hipot
Hipotronics 30HVT-DI is a portable digital AC hipot tester with 30kV output, adjustable parameters, internal memory storage, and HIPODirect Mobile App WiFi connectivity.
Product details
| Model | 30HVT-DI |
| Manufacturer | Hipotronics |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The Hipotronics 30HVT-DI is a modern AC hipot (dielectric withstand voltage) tester designed for field testing of electrical apparatus insulation strength. It features a state-of-the-art digital interface and comprehensive safety features for simplistic operation and accurate results under all circumstances.
The unit meets ANSI/SIA A92.2 specifications and is designed for portable field use with rugged and durable construction. All controls are self-contained with accurate voltage and current measurements taken directly from the high voltage transformer output and return leg.
Key Features
- 30kV AC output voltage with digital interface
- Multiple measurements: output voltage, leakage current, impedance, phase angle
- Adjustable test parameters: target voltage, maximum leakage current, ramp rate, dwell time
- Internal memory for recording and viewing test results
- HIPODirect Mobile App compatible for viewing, sharing, and uploading test reports via WiFi Direct
- Lightweight portable design with wheels for field mobility
- Comprehensive safety features: fast-acting fuse, external interlock, E-Stop
Applications
- Insulation strength testing of electrical apparatus
- Field dielectric withstand voltage testing
- Equipment maintenance and troubleshooting
- Safety compliance testing and certification
- Portable insulation verification
Specifications
| Operating Modes | AC, Output Voltage, Leakage Current, Impedance, Phase Angle |
| AC Voltage | 30 kV |
| Number of Channels | Single Channel |
| Series | HVT-DI Series |
| Current | 10 mA |
| Display | 7" Color Touchscreen |
| Includes | Interconnect cable with clamp, return cable, ground cable, power cord, Interlock plug, Voltmeter probe, USB drive with manual, Calibration certificate |
| Input Voltage | 90-265 VAC |
| Interface | USB, WiFi |
