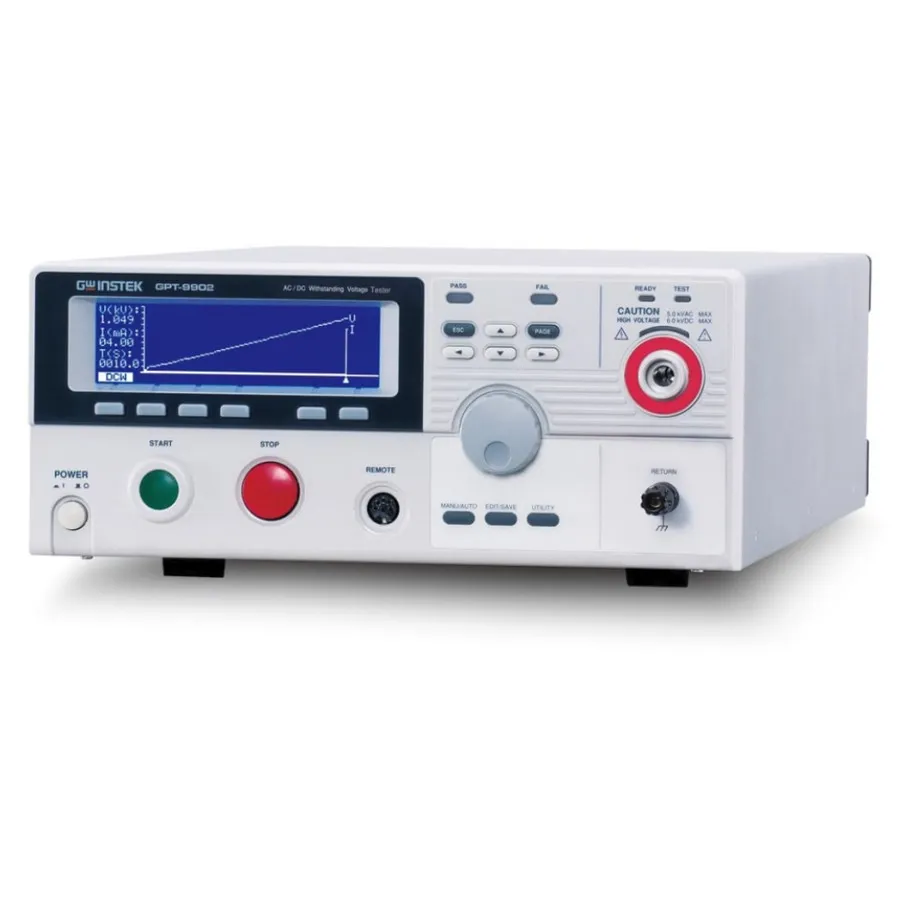

GW Instek GPT-9902A AC/DC Withstanding Voltage Tester

Overview

The GW Instek GPT-9902A is a 500VA AC/DC withstanding voltage tester designed for comprehensive electrical safety testing of electronic products and components. This model combines AC and DC voltage testing capabilities with the sweep function for graphical DUT analysis, built on the high-efficiency PWM amplifier platform of the GPT-9900 series.

Key Features

• 500VA AC test capacity with AC/DC withstanding voltage functions
• AC withstanding voltage testing (5 kV / 100 mA)
• DC withstanding voltage testing (6 kV / 20 mA)
• Sweep function for graphical analysis of DUT characteristic response during testing
• 240x64 dot matrix LCD display with color LED indicators
• High resolution: 1 µA current measurement, 2V voltage setting
• 100 memory blocks for individual test condition storage with custom names
• Manual and automatic test modes with adjustable ramp-up times
• Zero crossing turn-on and automatic DUT discharge (within 150 µs)
• Safety interlock function for operator protection
• True RMS current measurement
• Interfaces: RS-232C, USB device, Signal I/O, and GPIB (optional)
• Rear panel output available for system integration

Applications

• AC and DC withstanding voltage testing for electronic products
• Compliance with international safety standards (IEC, EN, UL, CSA, GB, JIS)
• Manufacturing and quality assurance testing
• System integration and automated test applications

Included Accessories

• Quick Start Guide and user's manual on CD
• Power cord
• Interlock key
• Remote terminal male plug
• GHT-114 test lead
• Two-year warranty
