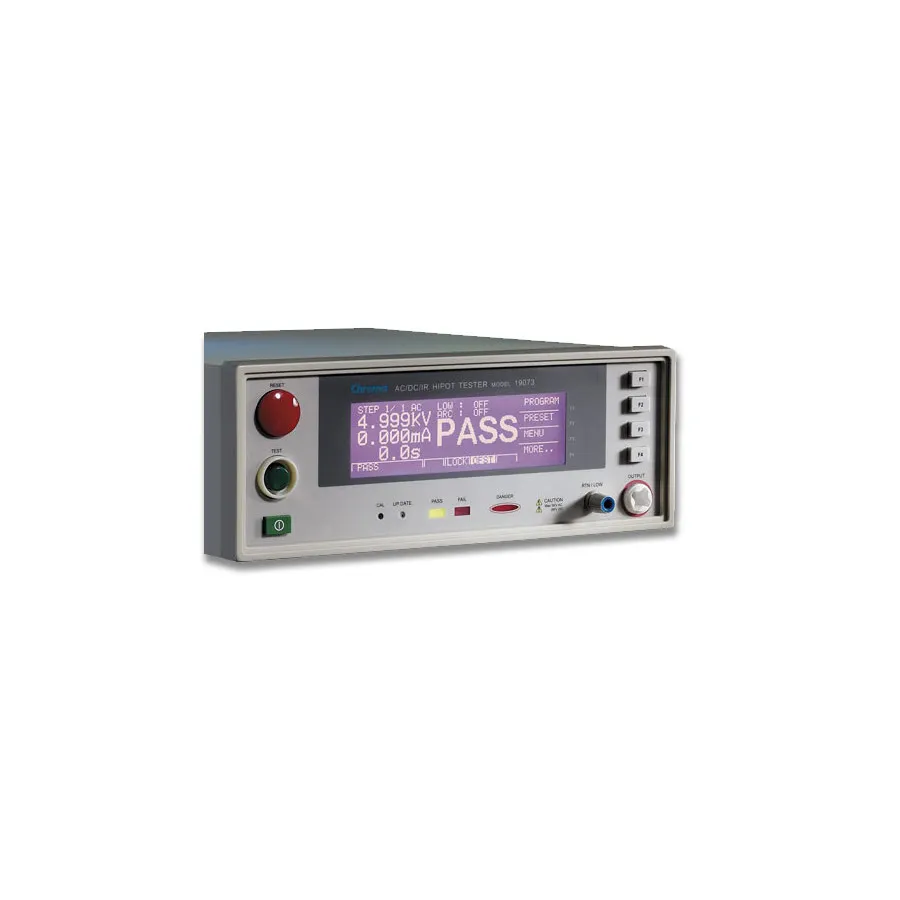

Chroma 19071 Hipot Tester

Overview

The Chroma 19071 is a compact AC hipot tester designed for safety testing and analysis of electronic components. With 5 kVAC withstand voltage testing capability, it is the smallest hipot tester available on the market. The 19071 features a large 240 x 64 dot-matrix LCD display, flashover (arc) detection, and is a direct drop-in replacement for the QuadTech Sentry 10 Plus.

Key Features

• AC hipot testing up to 5 kVAC
• Ground continuity check
• Open Short Check (OSC) function to detect open circuits and short conditions
• Flashover (ARC) detection during testing
• Ground Fault Interrupt (GFI) protection—shuts down at imbalance current >0.5 mA
• Quick discharge in IR and DC test modes
• Pause mode for flexible test control
• Large 240 x 64 dot-matrix LCD display
• Programmable ramp/fall time and test duration
• Programmable high and low test limits
• Save and recall program test function
• Remote control and serial interface capability

Applications

• Transformer and electronic component safety testing
• Production testing of appliances, instruments, and IT equipment in accordance with UL, IEC, and TUV standards
• Electric motor safety testing
