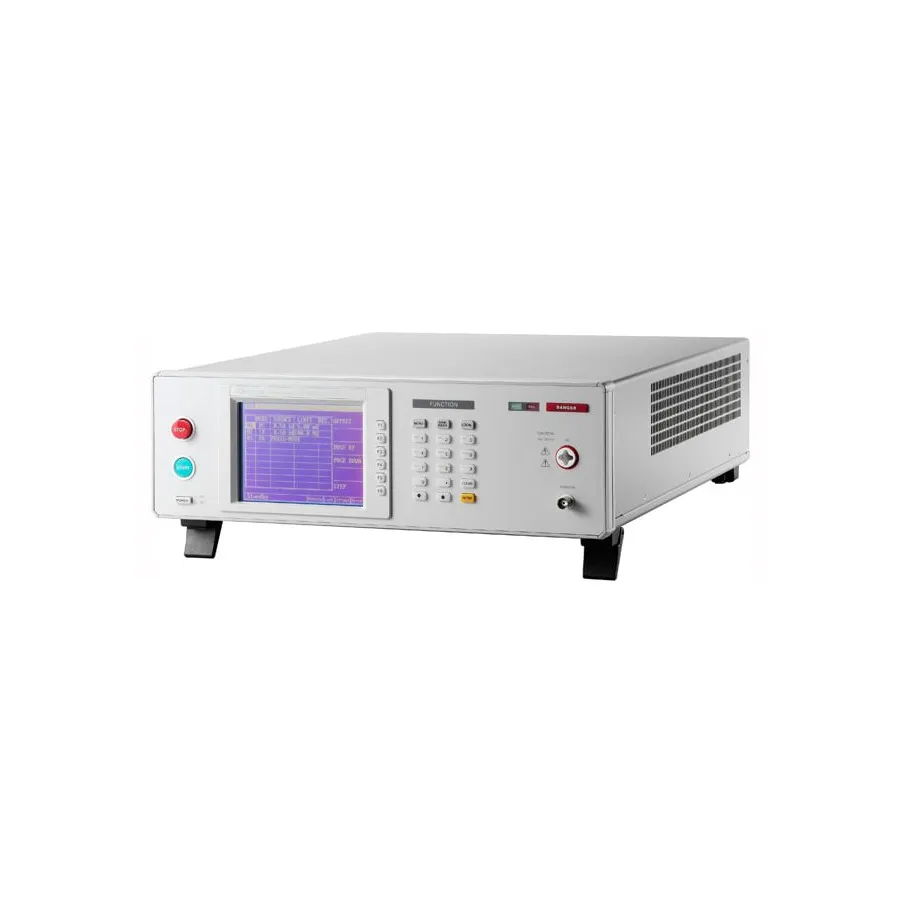

Chroma 19056 Hipot Analyzer
Request a quote
Chroma 19056 hipot analyzer provides 10kV AC and 20kV DC withstand voltage testing with BDV measurement, flashover detection, and high voltage contact check.
Product details
| Model | 19056 |
| Manufacturer | Chroma |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The Chroma 19056 Hipot Analyzer is designed for ultra-high withstand voltage testing and analysis. It provides 10kV AC and up to 20kV DC output with advanced contact check and flashover detection capabilities. The 19056 is ideal for testing components with high insulation requirements, including optical couplers, high voltage relays, switches, and photovoltaic modules.
Key Features
- 10 kV AC and 20 kV DC withstand voltage testing
- Insulation Resistance: 0.1 Megohm to 50 Gigaohm
- BDV (BreakDown Voltage) measurement and analysis
- High Voltage Contact Check (HVCC)
- High Frequency Contact Check (HFCC)
- Open Short Check (OSC)
- Ground Fault Interrupt (GFI) for operator protection
- Fast charge/discharge function for capacitive components
- Flashover (ARC) detection with FSV and BDV indication
- Programmable output and test limits
- RS-232 interface (optional GPIB and Handler)
- Oscilloscope connection for waveform analysis
Applications
- Optical couplers and high voltage relays
- High voltage switches and photovoltaic (PV) modules
- Components requiring ultra-high insulation testing
- Production line testing and R&D failure analysis
Included Accessories
- Power cord
- 3PIN to 2PIN power adapter
- HV terminal test cable
- Low contact test cables (2)
- 6.3A Fuse
- Quick start guide
- 19" Rack Mount
- User's manual CD
Specifications
| Series | 19056 Series |
