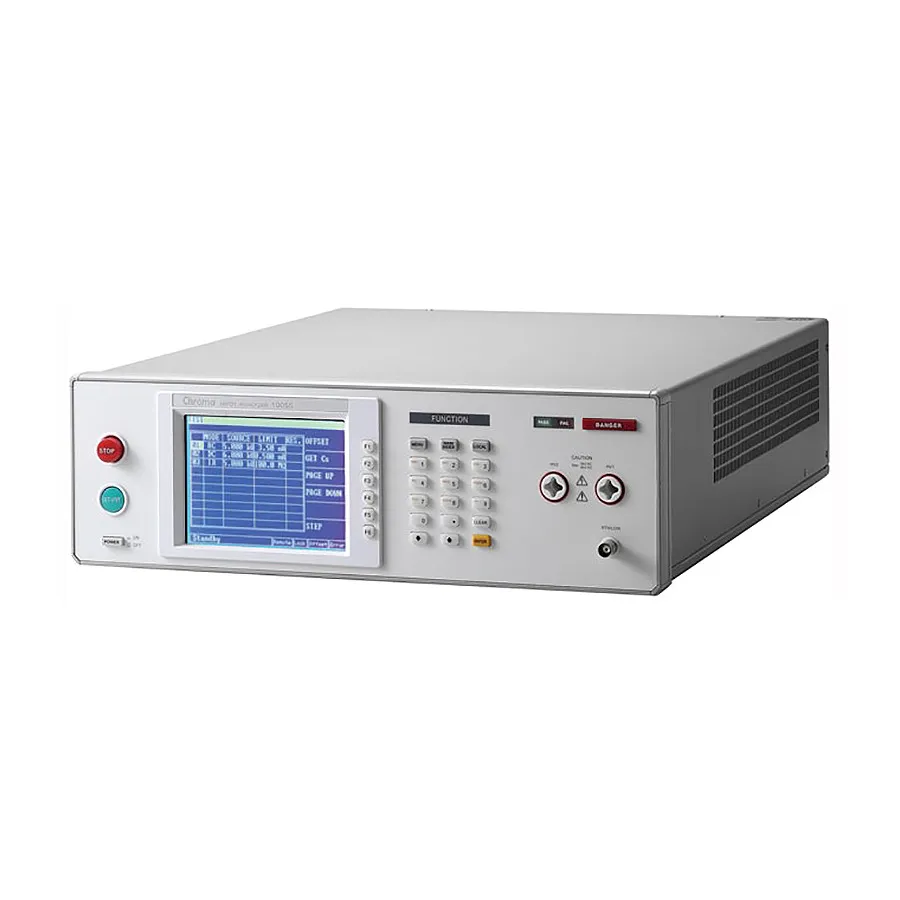

Chroma 19055 Hipot Analyzer
Request a quote
Chroma 19055 hipot analyzer provides 5kV AC/6kV DC withstand voltage testing with 500VA output, flashover detection, and discharge level analysis for component screening.
Product details
| Model | 19055 |
| Manufacturer | Chroma |
| Category | Hipot Testers |
| Availability | Made to order |
Description
Overview
The Chroma 19055 Hipot Analyzer is designed for hipot testing and analysis with programmable AC/DC Hipot and Insulation Resistance tests. It provides 5kV AC/100mA and 6kV DC/20mA output with 500VA rating, complying with EN50191 requirements. It includes flashover detection, discharge level analysis, and contact check capabilities for production line and R&D testing.
Key Features
- 5 kV AC, 6 kV DC hipot with 500 VA output
- Insulation Resistance: 1 Megohm to 50 Gigaohm, up to 5 kV test voltage
- Floating output complies with EN50191
- Flashover Detection
- Discharge Level Analysis (DLA)
- Open Short Check (OSC)
- High Frequency Contact Check (HFCC)
- Ground Fault Interrupt
- RS-232 interface (optional GPIB and Handler)
- Key lock when fail
- Supports A190301 8 Channel HV Scanning Box
Applications
- Motor starters and rotors with high parasitic capacitance
- Power transformer primary-side corona discharge detection
- High voltage capacitors and photocouplers
- Insulation material quality control
Specifications
| Series | 19055 Series |
