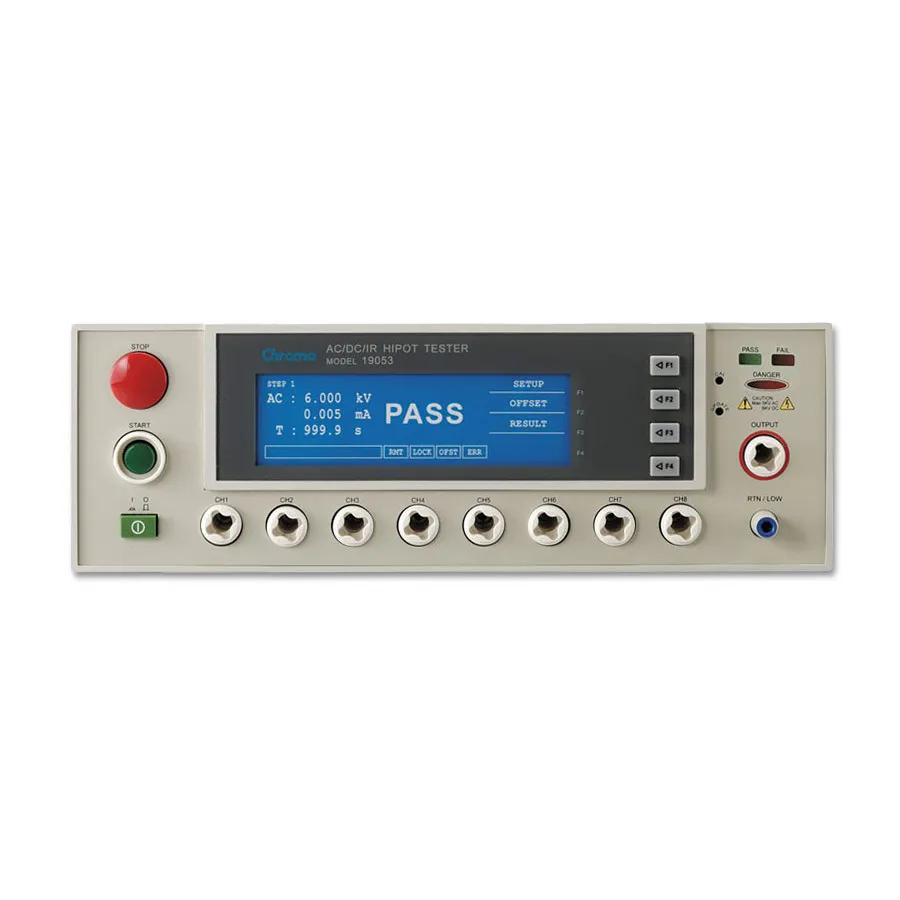

Chroma 19053 8-Channel Hipot Tester

Overview

The Chroma 19053 is a 3-in-1 hipot tester featuring an integrated 8-channel scanner for high-throughput testing of multiple samples. It combines AC and DC hipot testing with insulation resistance measurement, providing a complete dielectric testing solution. This model serves as a direct replacement for the QuadTech Guardian 1030S and is designed for production environments requiring simultaneous testing of multiple devices.

Key Features

• 3-in-1 composite tester with built-in 8-channel scanner for parallel testing
• AC hipot output to 5 kV, DC hipot output to 6 kV
• Insulation resistance measurement to 50 Gigohms at 1000 VDC
• Programmable trip current: 30 mA AC, 10 mA DC
• Open/Short Check (OSC) for pre-test verification on all channels
• Arc detection (flashover) with high-speed contact check
• Ground Fault Interrupt (GFI) for operator protection
• Fast cutoff time (0.4 ms) and rapid discharge (0.2 sec)
• 50 test setup storage with 100 steps per setup
• Standard RS-232 interface with optional GPIB support

Applications

• High-volume production testing with simultaneous multi-channel operation
• Electrical safety compliance testing and product certification
• Dielectric withstand voltage verification for manufacturing
• Insulation resistance measurement and quality assurance
• Equipment maintenance and periodic testing
