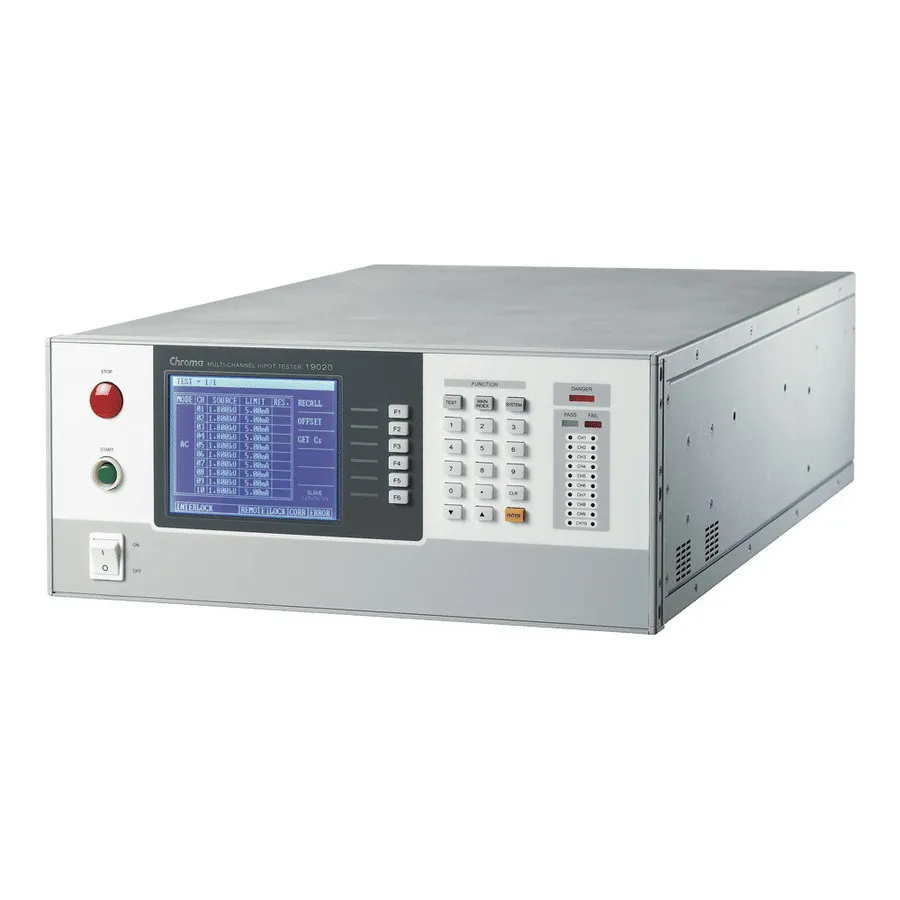

Chroma 19023-8-20 4 Channel Hipot Tester

Overview

The Chroma 19023-8-20 Guardian is a 4-channel hipot tester featuring synchronized testing across multiple channels. The unit can operate independently or be linked with up to 9 additional units to create a system with up to 100 channels, making it ideal for high-volume production testing of electrical safety requirements.

Key Features

• 4-channel synchronized hipot testing with programmable output voltage and limits
• Test voltage range: 0.05 to 8 kV AC at up to 20 mA
• Flashover detection and Open/Short Check (OSC) functions for comprehensive safety verification
• Master/Slave control to link multiple units and minimize voltage differences between adjacent tests
• Multiple interface options: RS-232, Handler, and GPIB
• Large LCD panel for easy monitoring and control
• Panel lock function to prevent accidental parameter changes
• ACWV (AC Withstand Voltage) test mode

Applications

• Production line safety testing for electrical components and assemblies
• Regulatory compliance testing (UL, TUV, CE, GB)
• High-volume hipot testing with synchronized multi-channel output
• Medical device safety verification
• Industrial equipment qualification testing
