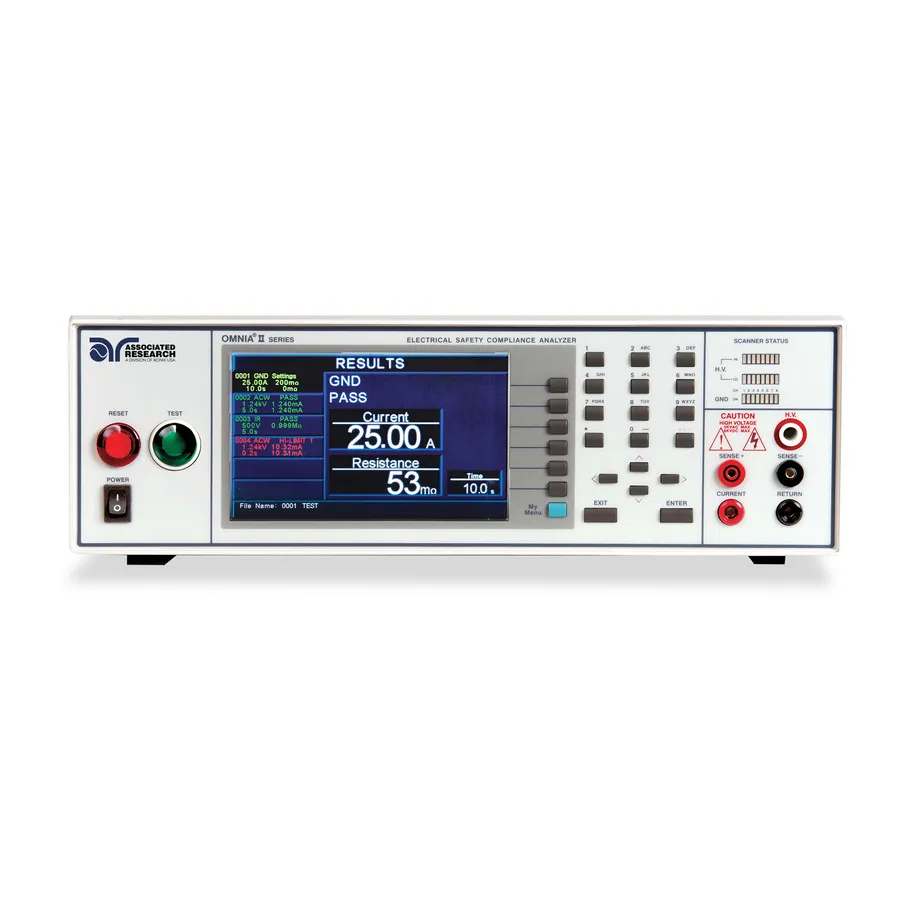

Associated Research 8257 Hipot Tester

Overview

The Associated Research 8257 is a comprehensive electrical safety compliance analyzer from the OMNIA II series, designed for complete electrical safety validation in manufacturing. The 8257 integrates a full range of safety testing functions with a built-in 500 VA AC power source, eliminating the need for external power conditioning equipment and reducing setup complexity.

The 8257 provides AC hipot testing up to 5 kV at 100 mA, DC hipot up to 6 kV, leakage current measurement, insulation resistance testing, 40 amp ground bond verification, and functional run capability. The integrated AC power source can supply 0–277V AC at up to 4.2A with adjustable frequency from 45–500 Hz, enabling comprehensive device validation in a single instrument.

Key Features

• Complete electrical safety testing: AC/DC hipot, ground bond, insulation resistance, continuity, leakage current, and functional run
• Built-in 500 VA AC power source: 0–277V output, 0–4.2A, 45–500 Hz frequency range
• Leakage current testing with RMS and peak detection across fault conditions
• Functional Run test with voltage, current, watt-meter, and power factor monitoring
• SmartGFI operator protection with automatic high voltage shutdown on excessive leakage
• 4-Wire Kelvin measurement for precision resistance testing
• DualCHEK simultaneous hipot and ground bond testing capability
• Internal data buffer for up to one million measurements with RS-422, USB, and Ethernet interfaces

Applications

• Complete electrical safety validation in device manufacturing
• Production testing with integrated AC power for functional and safety verification
• IEC/UL leakage current compliance testing and documentation
• Automated high-volume testing with optional internal or external multiplexer
• Equipment requiring both hipot testing and functional operation under load

Included Accessories

• NIST Traceable Calibration Certificate
• High Voltage Cables (3)
• High Current Output and Return Cables
• High Current Test Lead
• Fuse and USB Cable AB-Type 1.8m
• Line Cord and Adapter Box
• Rack Mount Brackets, Handles, and Hardware for 3U
