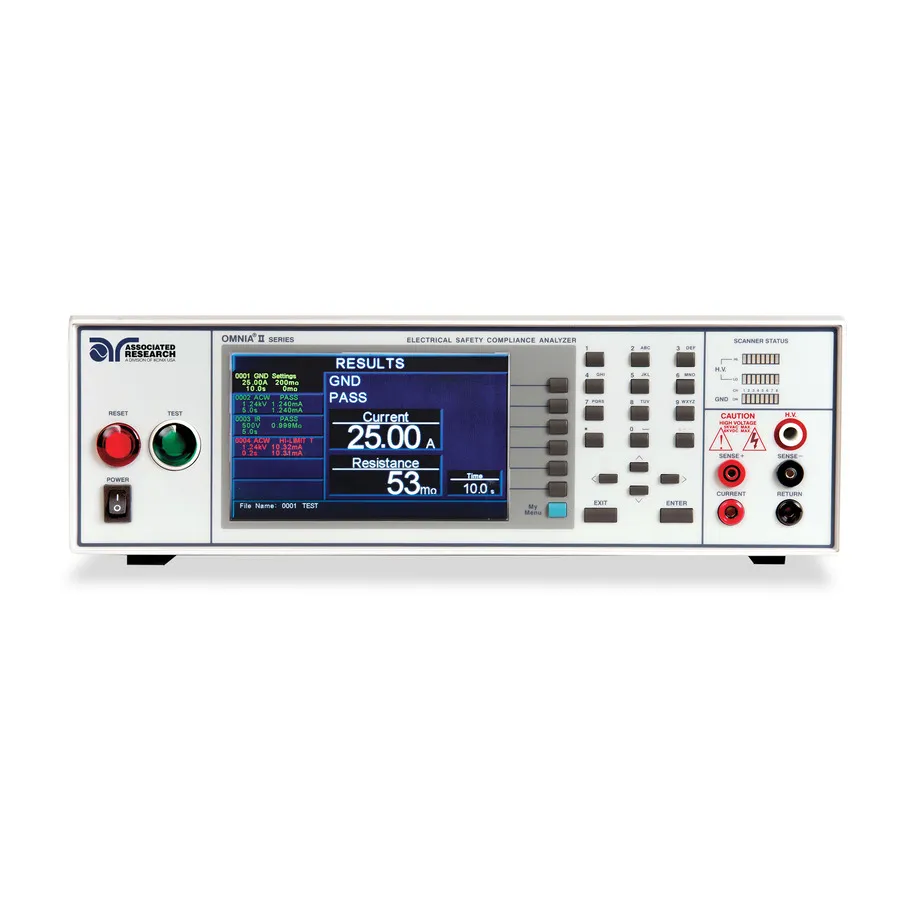

Associated Research 8256 Hipot Tester

Overview

The Associated Research 8256 is an advanced electrical safety compliance analyzer from the OMNIA II series. Building on core hipot and ground bond capabilities, the 8256 adds leakage current measurement and functional run testing for comprehensive electrical safety validation in manufacturing environments.

The 8256 provides AC hipot testing up to 5 kV at 100 mA, DC hipot up to 6 kV at 20 mA, 40 amp ground bond testing, insulation resistance measurement, and leakage current verification. The integrated functional run test capability allows devices to be exercised under operational conditions while monitoring electrical safety parameters.

Key Features

• Multi-function testing: AC/DC hipot, ground bond, insulation resistance, continuity, leakage current, and functional run
• Leakage current measurement: RMS and peak detection with neutral, ground, and polarity reversal fault testing
• Functional Run test: simultaneous voltage, current, power factor, and watt-meter monitoring
• SmartGFI operator protection system with automatic high voltage shutdown
• 4-Wire Kelvin measurement for accurate resistance testing
• DualCHEK simultaneous hipot and ground bond testing reduces cycle time
• Internal data logging and multi-language support
• Optional multiplexer for high-throughput multi-point testing

Applications

• Comprehensive electrical safety compliance testing in production
• Functional and safety parameter verification of assembled devices
• Leakage current compliance testing per IEC/UL standards
• Ground continuity and insulation resistance measurement
• Automated multi-point testing with optional internal or external scanner

Included Accessories

• NIST Traceable Calibration Certificate
• High Voltage Cables (3)
• High Current Output and Return Cables
• High Current Test Lead
• Fuse and USB Cable AB-Type 1.8m
• Line Cord and Adapter Box
• Rack Mount Brackets, Handles, and Hardware for 3U
