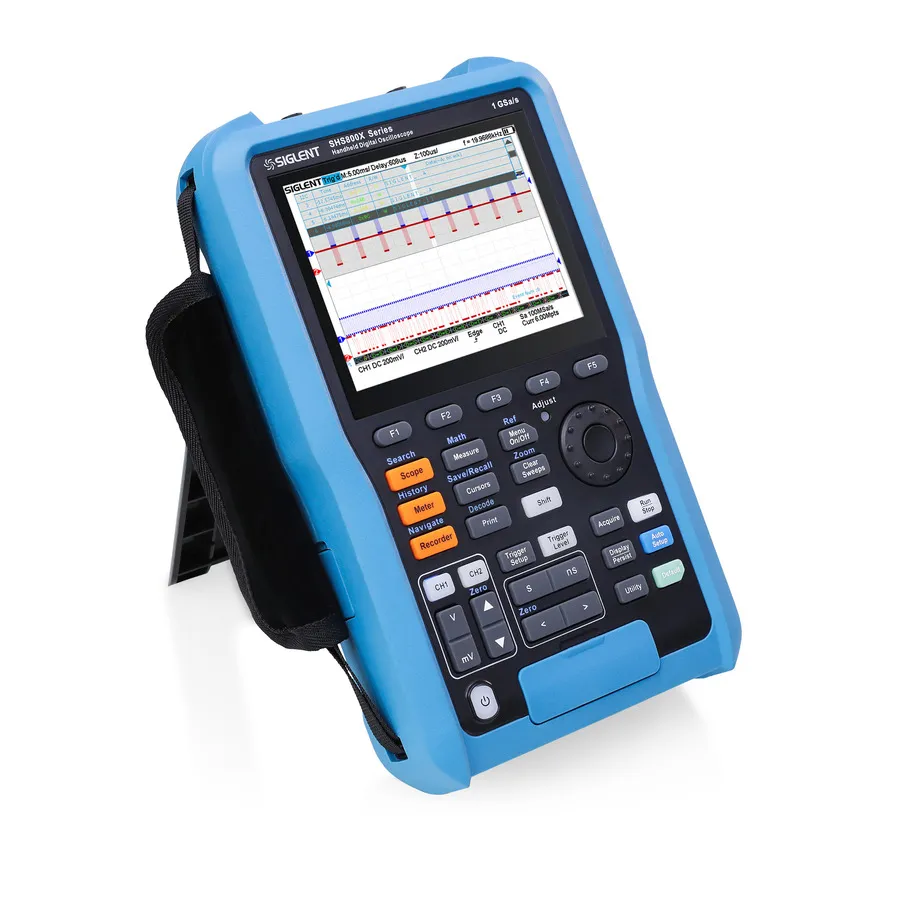

Siglent SHS820X Handheld Oscilloscope

Overview

The Siglent SHS820X is a rugged handheld oscilloscope designed for field service, maintenance, and laboratory testing. With 200 MHz bandwidth, 2 analog input channels, and an integrated 6000-count digital multimeter, it provides comprehensive measurement capabilities in a portable, sealed IP51-rated housing. The device combines oscilloscope, multimeter, and data logging in a single instrument suitable for electrical, electronics, and industrial applications.

Key Features

• 200 MHz analog bandwidth with 2 input channels
• 1 GSa/s sample rate (single channel), 500 MSa/s per channel (dual channel mode)
• 12 Megapoint memory depth with segmented acquisition up to 80,000 segments
• Super Phosphor Oscilloscope (SPO) technology: waveform capture rates up to 400,000 frames/s
• 1 Megapoint FFT with frequency domain analysis and marker support
• Integrated 6000-count digital multimeter with True RMS AC measurements
• 38 automatic measurement parameters with statistics, zoom, and gating functions
• Multiple intelligent trigger modes: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern
• Serial bus triggering and decoding for IIC, SPI, UART, CAN, and LIN protocols
• Built-in sample recorder (up to 25 kSa/s, 22-hour capacity) and measurement logger (25-hour capacity)
• 5.6-inch TFT LCD display with 640 × 480 resolution and 256-level intensity grading
• 6900 mAh lithium battery: 5.5 hours operating time
• Sealed IP51 dust and drip-proof housing (IEC60529 certified)
• USB Host (isolated) and USB Device (Micro USB) interfaces with SCPI remote control support
• UL61010-1, UL61010-2-030, UL61010-2-033 compliance

Applications

• Field electrical measurements and troubleshooting
• Electronics and circuit design validation
• Telecommunications signal analysis
• Industrial equipment maintenance and diagnostics
• Power system and motor testing
• Automotive electrical and sensor diagnostics
• Educational and laboratory work
