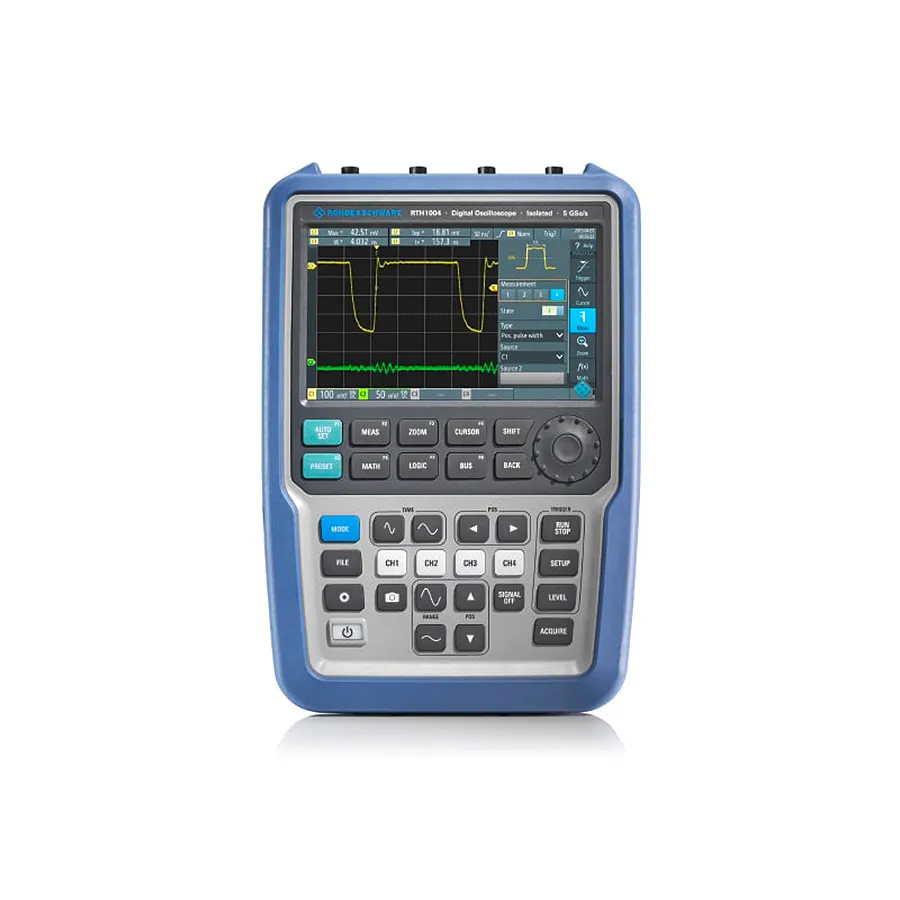

Rohde & Schwarz RTH1014 Handheld Oscilloscope
Request a quote
Rohde & Schwarz RTH1014 is a 4-channel handheld oscilloscope with 100 MHz bandwidth, 5 Gsample/s sampling, and CAT IV 600V isolated inputs for field troubleshooting.
Product details
| Model | RTH1014 |
| Manufacturer | Rohde & Schwarz |
| Category | Handheld Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTH1014 is a 4-channel handheld digital oscilloscope with 100 MHz bandwidth. Designed for field troubleshooting and lab debugging, this portable instrument delivers professional measurement capabilities in a rugged, battery-powered form factor with isolated input channels for safe operation on high-voltage systems.
Key Features
- 4-channel oscilloscope with 100 MHz bandwidth and 5 Gsample/s sampling rate
- Isolated channels with CAT IV 600V rating for safe high-voltage measurements
- 50,000 waveforms per second for rapid signal analysis and fault detection
- 33 automatic measurement functions for comprehensive signal characterization
- Deep zoom with 500 ksample acquisition memory
- 2 mV/div to 100 V/div sensitivity with up to 300 V offset range
- Optional mixed-signal module for 8-channel logic analysis
- Battery-powered for extended field operation
Applications
- Field troubleshooting of complex electronics systems
- Embedded system development and debugging
- Signal integrity testing and power electronics analysis
- Equipment maintenance and commissioning
Included Accessories
- 500 MHz 10:1 600V CAT IV voltage probe for each input channel
- Power supply with plugs for EU, GB, and US
- Lithium-ion battery pack
- Soft carrying handle
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Sampling Rate | 5 GS/s |
| Memory | 2 Mpts |
| Display Type | 7.0 WVGA LC TFT |
| Series | RTH Series |
| Alternate Product Number | 1317.5000P14 |
| Type | Handheld |
