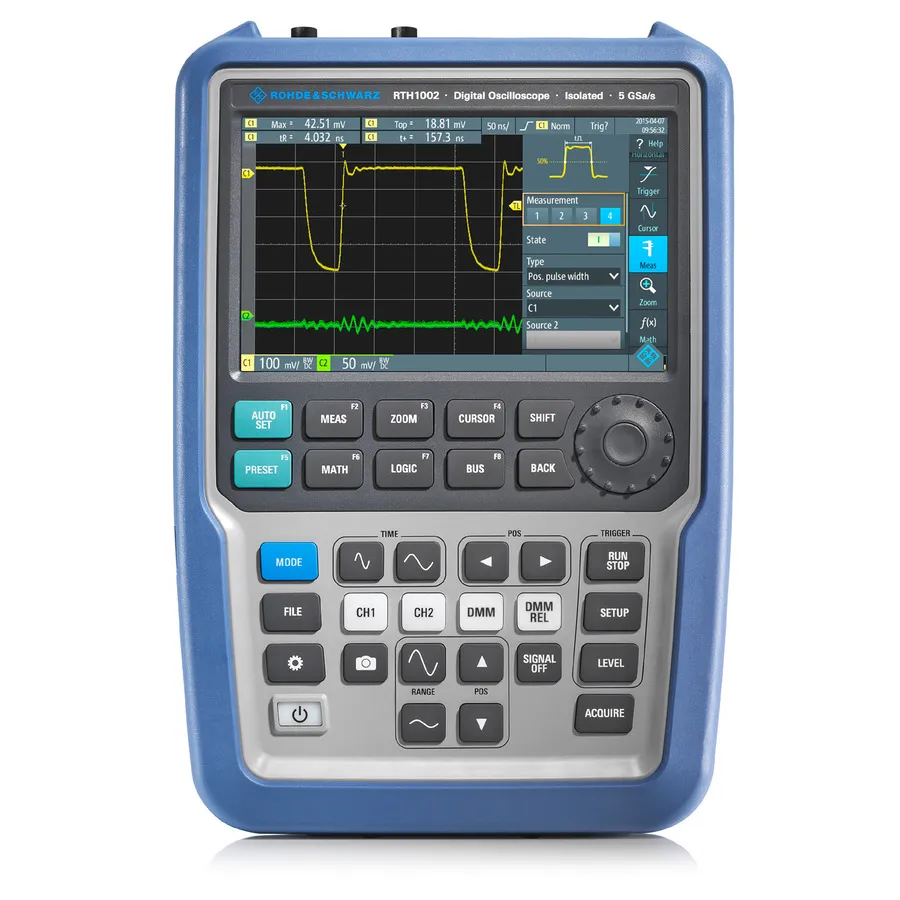

Rohde & Schwarz RTH1002 Handheld Oscilloscope

Overview

The Rohde & Schwarz RTH1002 is a 2-channel handheld oscilloscope combining lab-grade performance with portable, battery-operated design. With isolated input channels rated CAT IV 600 V, the RTH1002 delivers the capabilities of a lab oscilloscope in a rugged, field-ready package suitable for embedded system debugging and complex signal analysis in any environment.

Key Features

• 2-channel, 60 MHz bandwidth with 5 Gsample/s sampling rate
• 10-bit ADC with 2 mV/div to 100 V/div sensitivity
• Isolated, CAT IV 600 V rated inputs for safe power electronics measurements
• 50,000 waveforms per second acquisition
• 500 ksample acquisition memory with deep zoom
• 33 automatic measurement functions
• Up to 300 V offset range
• 8-bit logic analyzer interface (isolated from analog inputs)
• Protocol trigger and decode capabilities
• History mode and advanced trigger functions
• Touchscreen interface with intuitive user controls
• Integrated digital multimeter

Five Instruments in One

• Lab oscilloscope
• Logic analyzer
• Protocol analyzer
• Data logger
• Digital multimeter

Applications

• Embedded device debugging in the lab and field
• Power electronics troubleshooting with safe isolated measurements
• Signal parameter analysis and complex problem solving
• High-voltage electronics testing
• Field service and maintenance
• Remote measurements via wireless LAN control

Included Accessories

• 500 MHz, 10:1, 600 V CAT IV voltage probe for each channel
• 600 V CAT IV test leads
• Lithium-Ion battery pack
• Power supply with multi-region plugs (EU, UK, US, CAN, China, Australia)
• Compact manual
• Soft carrying handle
