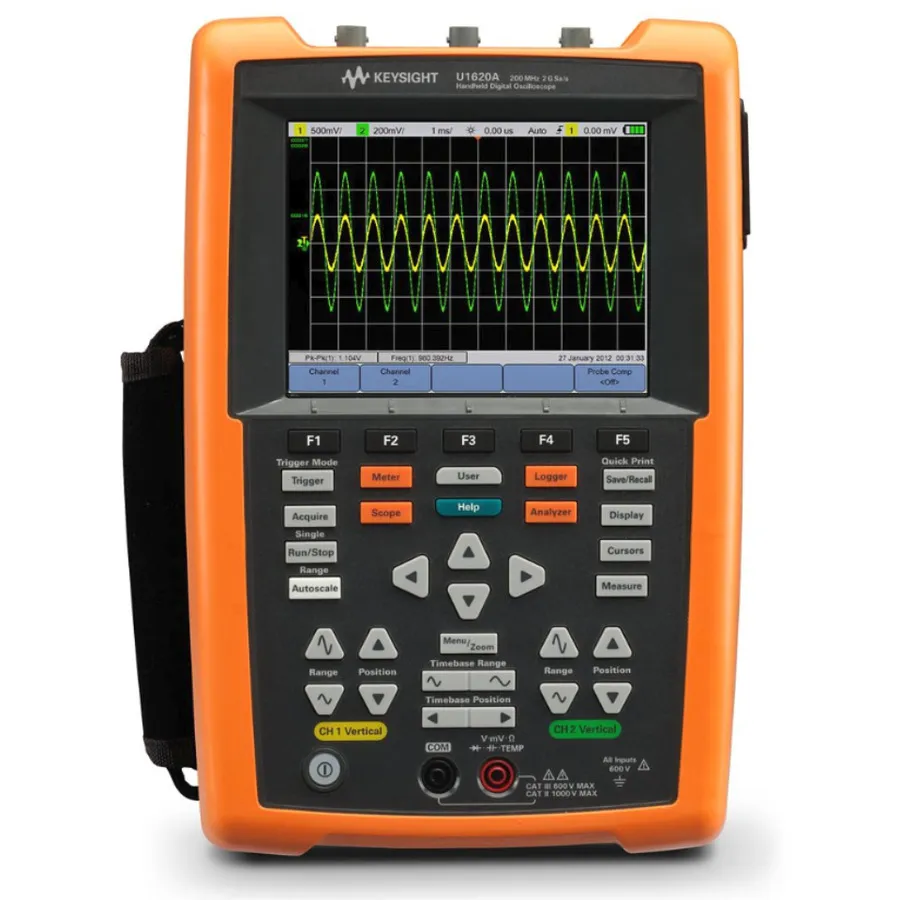

Keysight U1620A 200 MHz 2-Channel Handheld Oscilloscope

Overview

The Keysight U1620A is a 200 MHz bandwidth handheld oscilloscope with dual isolated measurement channels and advanced signal capture. Featuring a 5.7-inch VGA display with three selectable viewing modes, it provides superior performance for field troubleshooting in any environment. The instrument integrates full-featured DMM capabilities and a built-in logger function for comprehensive measurements.

Key Features

• Bandwidth: 200 MHz
• Sample rate: Up to 2 GSa/s
• Recording length: Up to 2 Mpts
• Dual channels with CAT III 600 V isolation
• 5.7-inch VGA display with three viewing modes
• Dual waveform zoom for detailed signal analysis
• Channel-to-channel isolation for high-power signal troubleshooting
• IP 41 ingress protection
• 10 selectable localized user interfaces
• Integrated DMM with full-featured measurement functions
• Built-in logger function for data recording

Display Modes

• Indoor mode: High contrast and brightness for clear waveform visibility under indoor lighting with wide viewing angles
• Outdoor mode: Anti-glare filtering to reduce sunlight reflection and enhance display readability in outdoor environments
• Night Vision mode: High contrast with proper color correction for subdued lighting conditions, ideal for measuring high-speed non-repetitive signals

Included Accessories

• Power adapter
• Li-Ion battery pack
• USB cable
• Test lead
• Two (2) 10:1 oscilloscope probes
• Quick start guide
• Three-year warranty
