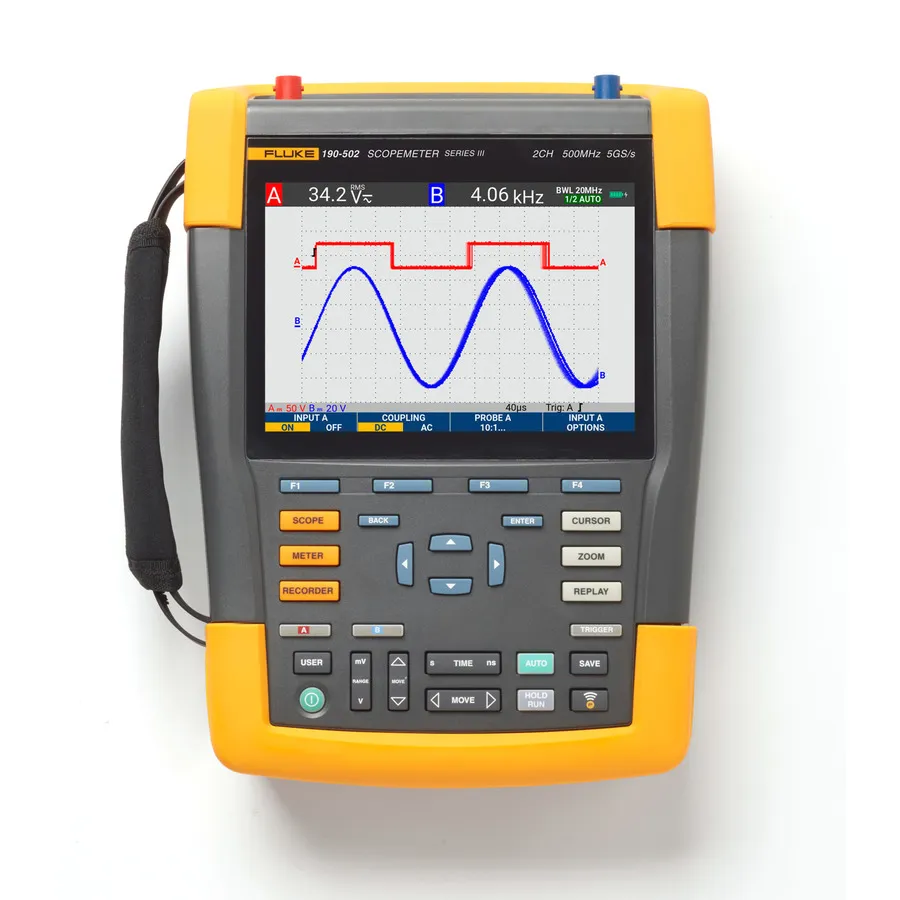

Fluke 190-502-III Handheld Oscilloscope

Overview

The Fluke 190-502-III ScopeMeter is a high-performance portable oscilloscope engineered for demanding field applications. Featuring two fully isolated channels with 500 MHz bandwidth and 0.7 ns rise time, it delivers precise measurements for microelectronics to high-voltage electrical testing. The bright color display ensures clear visibility in any field environment, while dual USB and optional Wi-Fi connectivity enable efficient data sharing and analysis with FlukeView software. An integrated 5,000-count DMM provides additional measurement versatility.

Key Features

• 2-channel oscilloscope with 500 MHz bandwidth and 0.7 ns rise time
• Maximum real-time sample rate: 5 GS/s (single channel) or 2.5 GS/s (dual channel)
• 8-bit vertical resolution with up to 10,000 samples per channel memory
• Integrated 5,000-count DMM for voltage and frequency measurements
• Automatic capture of 100 screens with 100-screen Replay function
• FFT frequency spectrum analysis and waveform compare/pass-fail testing
• Automatic and cursor measurements with trigger and delay controls
• CAT III 1000V / CAT IV 600V safety rating, IP51 dust and drip-proof
• Dual USB ports: USB-A for Wi-Fi adapter, Mini-USB-B for PC control
• Includes two VPS410-II 10:1 probes for high-voltage applications

Applications

• Industrial machinery troubleshooting and maintenance
• Automation and process control system diagnostics
• Power conversion and electrical system analysis
• Field testing from microelectronics to high-voltage circuits
• Waveform capture and intermittent fault diagnosis

Included Accessories

• ScopeMeter 190-502-III unit
• Two VPS410-II 10:1 probes
• BC190/830 power adapter with power cord set
• BP291 Li-ion battery pack
• TL175 test lead set
• TRM50 cable terminators (2 pieces)
• USB cable, hand strap, and hanging strap
• Printed instructions
