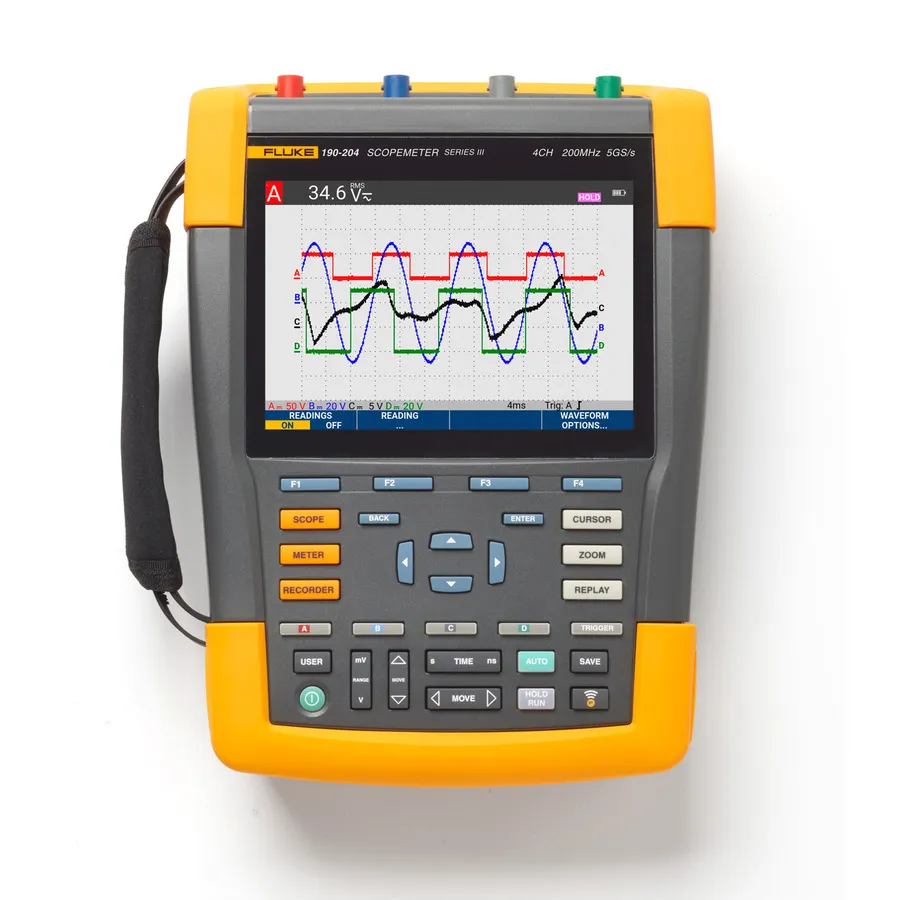

Fluke 190-204-III-S Handheld Oscilloscope

Overview

The Fluke 190-204-III-S ScopeMeter is a high-performance portable oscilloscope designed for harsh field environments. It features four fully isolated channels and a 200 MHz bandwidth with 1.7 ns rise time, enabling precise measurements across applications ranging from microelectronics to high-voltage industrial systems. The large bright color display provides clear visibility in the field, while integrated USB and Wi-Fi connectivity support data transfer for analysis with FlukeView software.

Key Features

• 4-channel oscilloscope with 200 MHz bandwidth and 1.7 ns rise time
• Maximum real-time sample rate: 2.5 GS/s (2 channels) or 1.25 GS/s (4 channels)
• 8-bit vertical resolution with up to 10,000 samples per channel memory
• Automatic capture of 100 screens with 100-screen Replay function
• FFT frequency spectrum analysis and waveform compare/pass-fail testing
• Automatic and cursor measurements with trigger and delay controls
• CAT III 1000V / CAT IV 600V safety rating, IP51 dust and drip-proof
• Dual USB ports: USB-A for Wi-Fi adapter, Mini-USB-B for PC control and data transfer
• Includes four VPS410-II 10:1 probes suitable for microelectronics and high voltage

Applications

• Industrial machinery installation, commissioning, and maintenance
• Automation and process control systems troubleshooting
• Power conversion electronics analysis
• Three-phase and three-axis control system measurements
• Complex waveform analysis and intermittent event diagnosis

Included Accessories

• ScopeMeter 190-204-III unit
• Four VPS410-II 10:1 probes
• BC190/830 power adapter with power cord set
• BP291 Li-ion battery pack
• CXT293 rugged protective carrying case
• DWA-131 WiFi dongle
• USB cable, hand strap, and hanging strap
• FlukeView-2 software (full version with activation code)
• Printed instructions
