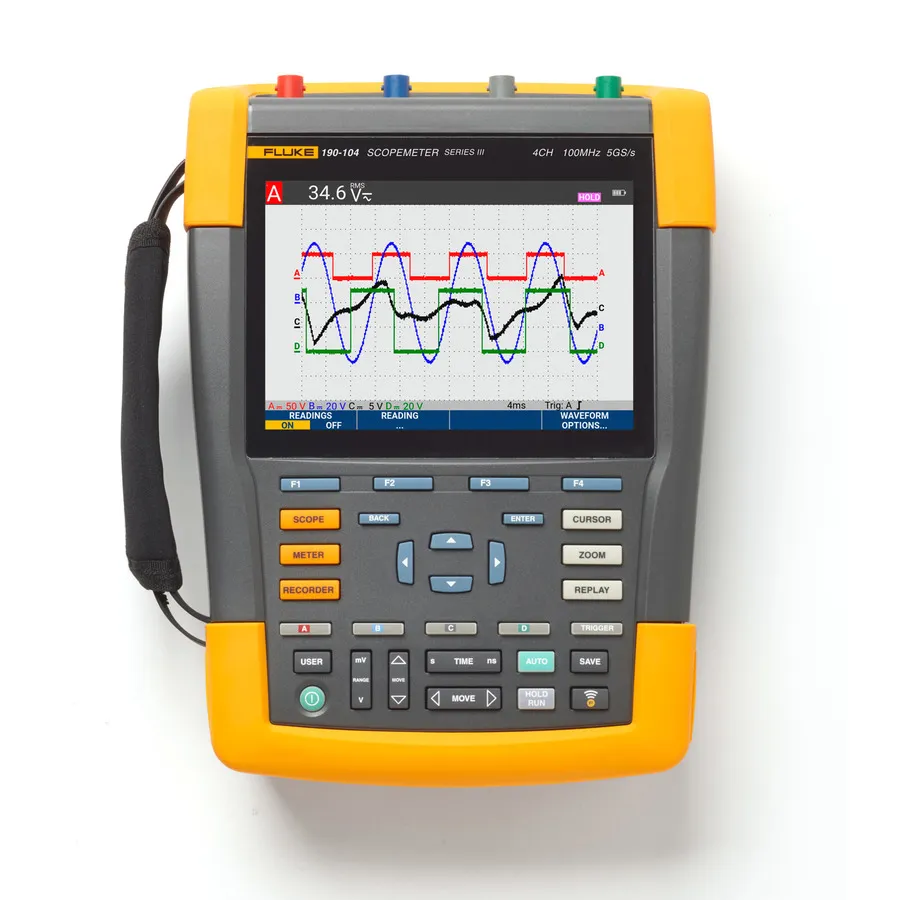

Fluke 190-104-III-S Handheld Oscilloscope

Overview

The Fluke 190-104-III-S is a portable 4-channel oscilloscope designed for field troubleshooting of complex electronic systems. With 100 MHz bandwidth and 1.25 GS/s real-time sampling, it captures detailed waveform information. The four fully isolated channels allow simultaneous measurements in circuits with different ground references, reducing the risk of accidental short circuits.

Built for harsh environments, the instrument carries a CAT III 1000 V/CAT IV 600 V safety rating and IP51 dust and drip-proof protection. A large color display provides clear visibility in the field. Data can be transferred to a PC via USB or optional WiFi for analysis with FlukeView software.

Key Features

• 4 fully isolated channels with simultaneous sampling
• 100 MHz bandwidth, 3.5 ns rise time
• 1.25 GS/s real-time sample rate (per channel)
• 8-bit vertical resolution, 10,000 samples per channel memory
• Automatic 100-screen capture with replay function
• FFT frequency spectrum analysis
• Waveform compare and pass/fail testing
• CAT III 1000 V / CAT IV 600 V safety rated
• IP51 dust and drip-proof housing
• USB-A for WiFi adapter, Mini-USB-B for PC control
• Includes 4 VPS421 100:1 probes

Applications

• Industrial machinery installation and maintenance
• Automation and process control diagnostics
• Power conversion electronics testing
• Three-phase and multi-axis system measurement
• Microelectronics design and troubleshooting

Included Accessories

• 4 VPS421 100:1 probes
• BC190/830 power adapter
• BP291 Li-ion battery pack (10.8V, 5000 mAh)
• CXT293 rugged carrying case
• DWA-131 WiFi dongle
• USB interface cable
• Hand and hanging straps
• FlukeView software activation code and user guide
