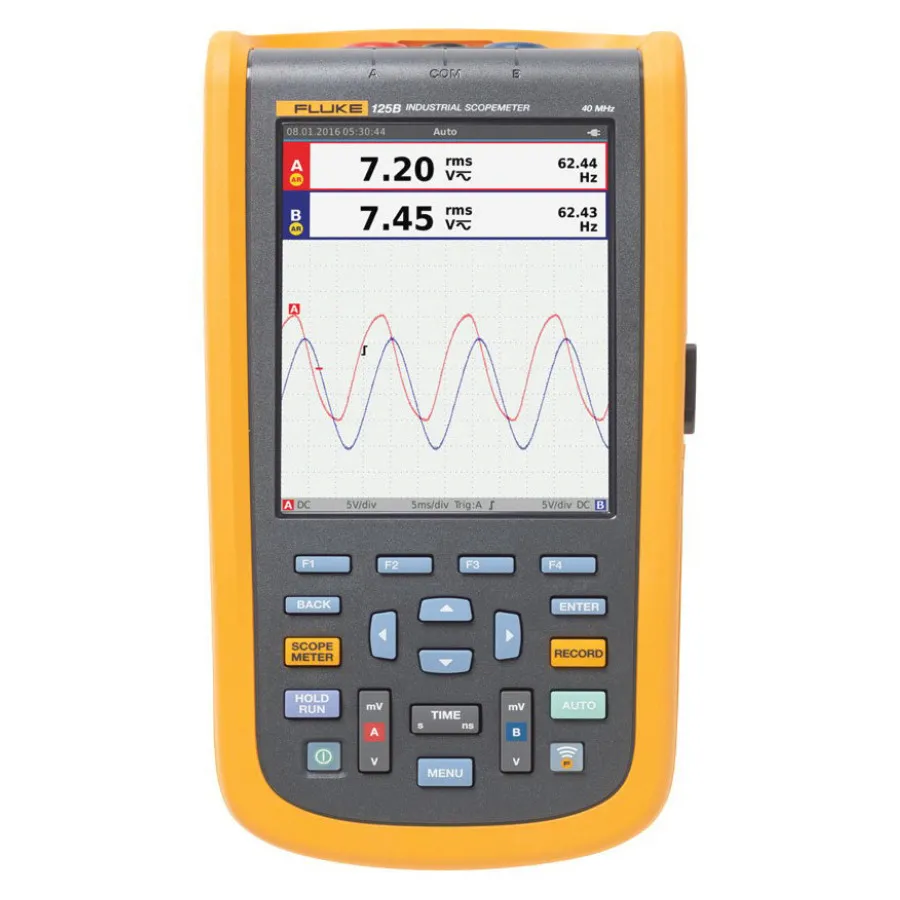

Fluke FLUKE-125B/INT/S Industrial ScopeMeter

Overview

The Fluke FLUKE-125B/INT/S is a rugged, handheld 40 MHz industrial oscilloscope designed for troubleshooting electrical and electro-mechanical equipment in demanding field environments. It combines a true dual-input oscilloscope with an integrated 5,000-count multimeter and high-speed data recorder in a single compact instrument. Rated CAT IV 600V and IP51 with 3g vibration and 30g shock protection, it withstands harsh industrial conditions.

Key Features

• 40 MHz dual-input oscilloscope with Connect-and-View automatic triggering
• True-RMS dual multimeter with resistance, continuity, diode, and capacitance measurements
• Power measurements including W, VA, VAR, power factor, and 3-phase calculations
• Voltage and current harmonic analysis for power quality assessment
• BusHealth physical layer testing for industrial network diagnostics
• Waveform and meter reading recorder with Recorder Event Detect for intermittent signals
• IntellaSet technology automatically displays appropriate readings for the measured signal
• CAT IV 600V safety rating, IP51 protection, rugged industrial design
• Rechargeable Li-Ion battery with 7 hours of operation and 4-hour charge time

Applications

• Industrial electrical equipment troubleshooting and maintenance
• Motor drive and variable frequency drive analysis
• Power quality and harmonic distortion assessment
• Control signal and logic circuit testing
• Industrial network commissioning and health monitoring

Included Accessories

• 10:1 voltage probe
• i400S AC current clamp
• Shielded test leads with ground and hook clips
• USB angled adapter and WiFi USB adapter
• Rechargeable Li-ion battery pack and charger
• Soft carrying case
• Magnetic hanger and screen protector
• FlukeView ScopeMeter Software for Windows
