Fluke 190-102-III CAL ScopeMeter
Fluke 190-102-III CAL is a 2-channel handheld oscilloscope with 100 MHz bandwidth, 10,000-point memory, CAT III/IV safety rating, and integrated DMM for industrial troubleshooting.
Product details
| Model | 190-102-III CAL |
| Manufacturer | Fluke |
| Category | Handheld Oscilloscopes |
| Availability | Made to order |
Description
Overview

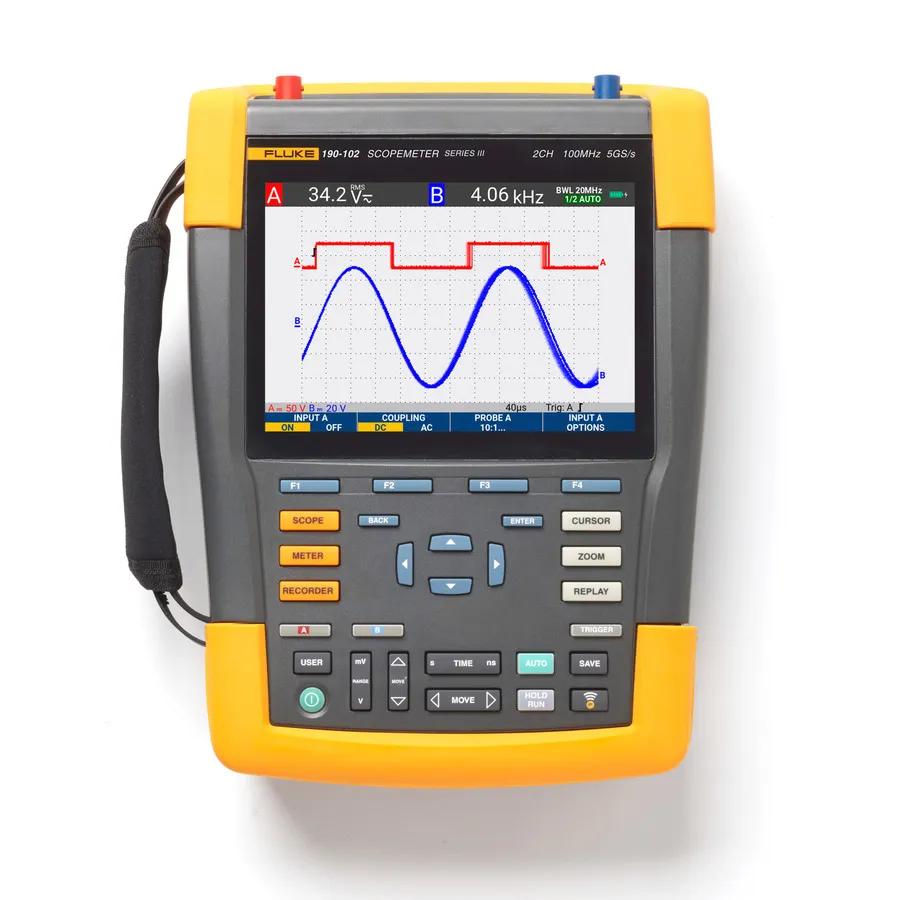

The Fluke 190-102-III CAL ScopeMeter is a rugged, handheld oscilloscope with 2 channels and 100 MHz bandwidth, designed for field troubleshooting in industrial environments. With independently isolated inputs and CAT III 1000V/CAT IV 600V safety ratings, it enables safe measurements in circuits with different ground references—a significant advantage over conventional bench oscilloscopes.
This portable test tool combines handheld convenience with advanced features including 5 GS/s sampling rates, 10,000-point memory per channel, IP51 rating for harsh environments, and an integrated 5,000-count digital multimeter. The included FlukeView software enables waveform documentation, archiving, and analysis on a PC via USB or Wi-Fi connectivity.
Key Features
- 2 independently isolated floating inputs, up to 1000V
- 5 GS/s real-time sampling rate with 10,000-point deep memory
- CAT III 1000V/CAT IV 600V safety rating for industrial environments
- Large, bright color display visible in any environment
- IP51 rating: dust and drip-proof for harsh environments
- Connect-and-View triggering for automatic stable signal display
- FFT frequency spectrum analysis
- Automatic capture and replay of 100 screens
- ScopeRecord mode with 30,000 points per channel for low-frequency analysis
- TrendPlot paperless recorder mode for long-term measurements
- Integrated 5,000-count DMM
- Up to 7 hours battery operation with optional BP291 battery
- Easy data transfer via USB and optional Wi-Fi
- Includes VPS421 100:1 probes for high-voltage measurements
Applications
- Industrial machinery setup, activation, and maintenance
- Automation systems troubleshooting
- Process control diagnostics
- Power conversion electronics testing
- Three-phase system analysis and measurement
- Power electronics and microelectronics testing
Included Accessories
- ScopeMeter 190-102-III
- BC190/830 power adapter
- Power cord set
- BP290 Li-ion battery pack
- TL175 test lead set
- VPS421 probe (2 units)
- Hand strap and hanging strap
- USB cable
- Printed instructions
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 2 |
| Sampling Rate | 1.25 GS/s |
| Series | 190 Series III |
| Alternate Product Number | 5313300 |
| Type | Handheld |
| Vertical Resolution | 8 bit |
