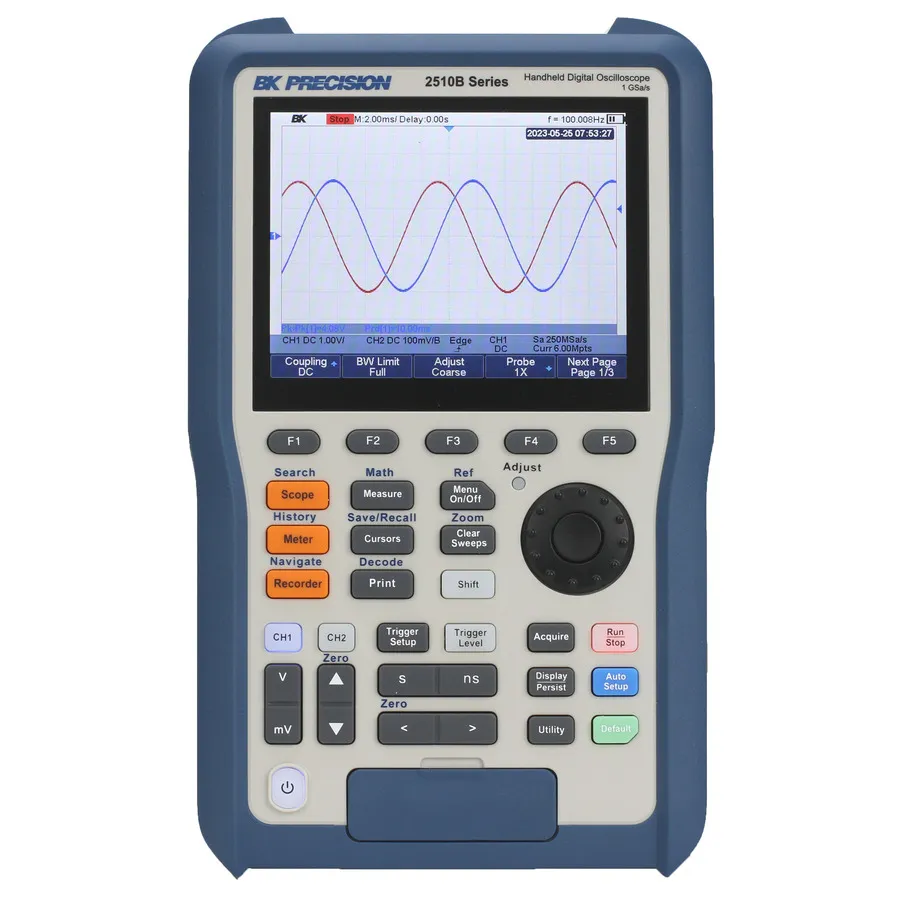

B&K Precision 2516B Handheld Digital Storage Oscilloscope

B&K Precision · Model: 2516B Made to order
B&K Precision 2516B Handheld Digital Storage Oscilloscope
Request a quote

B&K Precision 2516B is a handheld digital storage oscilloscope with 200 MHz bandwidth, two isolated CAT III 600V inputs, built-in DMM, and data logging capabilities.

Model 2516B
Manufacturer B&K Precision
Category Handheld Oscilloscopes
Availability Made to order

Overview

The B&K Precision 2516B is a handheld digital storage oscilloscope designed for industrial applications, power systems, electronic design, and field test and service. It combines floating measurement capability with a built-in 6000-count digital multimeter (DMM), all in one portable and lightweight package. The two fully isolated channels are rated for 1000 V CAT II, 600 V CAT III measurements, with electrically isolated circuits between inputs and the acquisition system to eliminate ground loops and reduce crosstalk.

Key Features

  • 200 MHz bandwidth with 1 GSa/s sample rate
  • 2 fully isolated 1000 V CAT II, 600 V CAT III inputs
  • 12 Mpts memory depth
  • Serial bus decoding for IIC, SPI, UART, CAN, and LIN protocols
  • FFT plus 7 additional math functions
  • Built-in 6000-count DMM for voltage, current, resistance, capacitance, diode, and continuity measurements
  • 38 automatic measurements
  • Scope recorder and trend plot functions for data logging
  • USB host port for storing waveforms, setups, and screenshots on USB flash drive
  • Two 250 MHz bandwidth x1/x10 passive probes included

Applications

  • Industrial testing and troubleshooting
  • Power systems analysis
  • Electronic design and development
  • Field service and maintenance

Included Accessories

  • Two PR250B Passive Probes (x1/x10, 1000 V CAT II, 600 V CAT III)
  • 600 mA shunt
  • 10 A shunt
  • Power adapter
  • USB cable
  • Carrying bag
  • Battery pack
Bandwidth 200 MHz
Analog Channels 2
Sampling Rate 1 GS/s
Memory 12 Mpts
Display Type 5.6 TFT/LCD
Series 2510B Series
Type DSO
Vertical Resolution 8 bit
