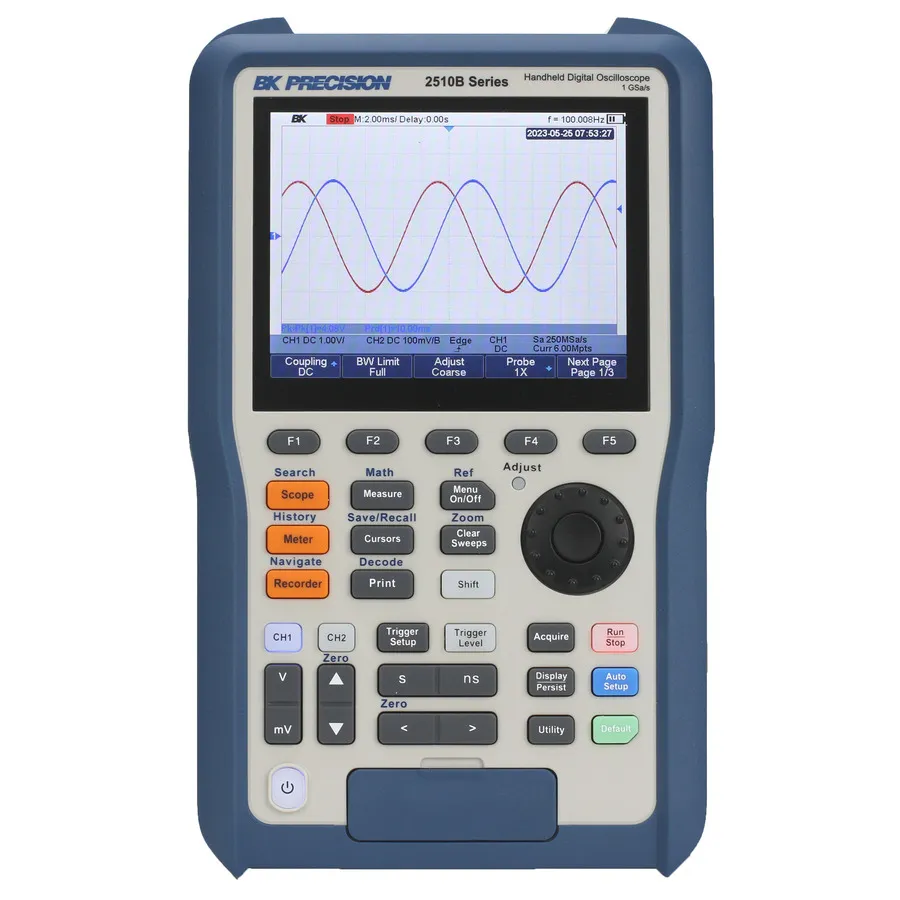

B&K Precision 2515B Handheld Digital Storage Oscilloscope

Overview

The B&K Precision 2515B is a portable handheld digital storage oscilloscope featuring two fully isolated and floating measurement channels. It combines measurement and recording capabilities with a built-in 6000-count digital multimeter (DMM) for comprehensive electrical testing in industrial applications, power systems, electronic design, and field service.

Key Features

• 100 MHz bandwidth with 1 GSa/s sample rate
• 2 fully isolated and floating channels: 1,000 V CAT II, 600 V CAT III rated inputs
• 12 Mpts memory depth for extended waveform capture
• Electrically isolated circuit design eliminates ground loops and reduces noise
• Serial bus decoding: IIC, SPI, UART, CAN, LIN protocols
• FFT plus 7 additional math functions
• Built-in 6000-count DMM: DC/AC voltage and current, resistance, capacitance, diode, continuity test
• Recorder and trend plot functions for data logging
• USB host port for storing waveforms, setups, and screenshots
• 38 automatic measurements

Included Accessories

• Power adapter
• USB cable
• Two PR250B passive probes (x1/x10, 250 MHz, 1000 V CAT II, 600 V CAT III)
• 600 mA current shunt
• 10 A current shunt
• Carrying bag
• Battery pack
