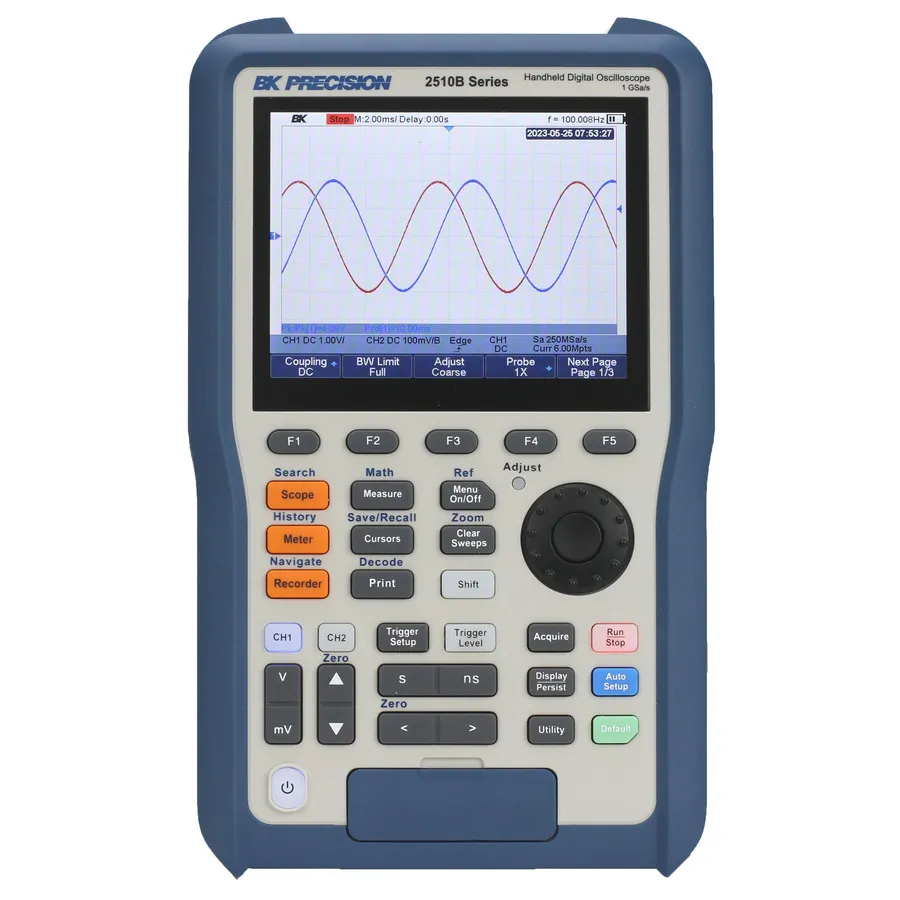

B&K Precision 2512B Handheld Digital Storage Oscilloscope
Request a quote
B&K Precision 2512B is a portable digital storage oscilloscope with 200 MHz bandwidth, 2 non-isolated channels, and built-in 6000-count DMM.
Product details
| Model | 2512B |
| Manufacturer | B&K Precision |
| Category | Handheld Oscilloscopes |
| Availability | Made to order |
Description
Overview
The B&K Precision 2512B is a portable handheld digital storage oscilloscope designed for industrial applications, power systems, electronic design, and field test and service. It combines floating measurement and recording capabilities with a built-in 6000-count digital multimeter (DMM) in a single lightweight package.
Key Features
- 200 MHz bandwidth with 1 GSa/s sample rate
- 2 non-isolated channels with 300 V CAT II input rating
- 12 Mpts memory depth for extended waveform capture
- Serial bus decoding: IIC, SPI, UART, CAN, LIN protocols
- FFT plus 7 additional math functions
- Built-in 6000-count DMM: DC/AC voltage and current, resistance, capacitance, diode, continuity test
- Recorder and trend plot functions for data logging
- USB host port for storing waveforms, setups, and screenshots on USB flash drive
- 38 automatic measurements
Included Accessories
- Power adapter
- USB cable
- Two 250 MHz passive probes (x1/x10, 300 V CAT II)
- 600 mA current shunt
- 10 A current shunt
- Carrying bag
- Battery pack
Specifications
| Bandwidth | 200 MHz |
| Analog Channels | 2 |
| Sampling Rate | 1 GS/s |
| Memory | 12 Mpts |
| Display Type | 5.6 TFT/LCD |
| Series | 2510B Series |
| Type | DSO |
| Vertical Resolution | 8 bit |
