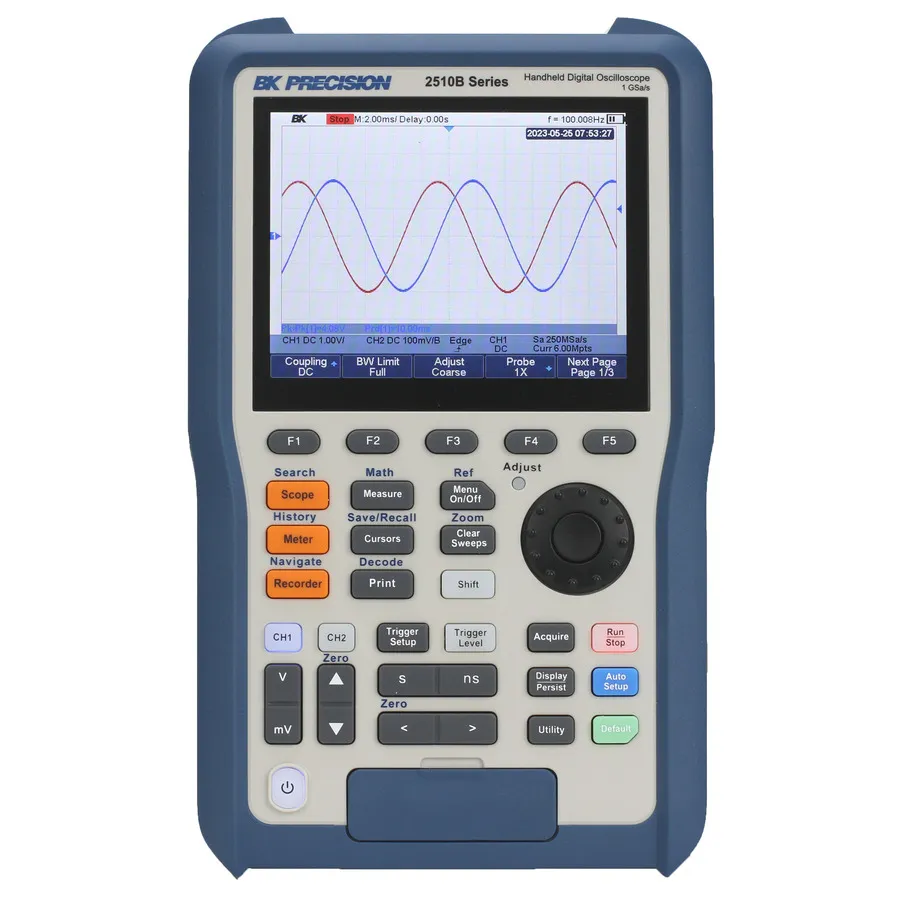

B&K Precision 2511B Handheld Digital Storage Oscilloscope

Overview

The B&K Precision 2511B is a portable digital storage oscilloscope designed for field testing, industrial troubleshooting, and electronic design work. With 100 MHz bandwidth, 2 non-isolated channels, and 1 GSa/s sampling rate, this oscilloscope captures transient signals with 12 Mpts of memory depth. It combines floating measurement capabilities with an integrated 6000-count digital multimeter, providing comprehensive testing in a single lightweight package.

Key Features

• 100 MHz bandwidth with 2 non-isolated channels at CAT II 300 V rating
• 1 GSa/s sample rate and 12 Mpts memory depth for detailed waveform capture
• 38 automatic measurements with FFT and 7 additional math functions
• Built-in 6000-count DMM measuring DC/AC voltage, current, resistance, capacitance, diode, and continuity
• Serial bus decoding for IIC, SPI, UART, CAN, and LIN protocols
• Scope recorder and trend plot functions with up to 50 MB internal memory
• USB host port for storing waveforms, setups, and screenshots to external drives up to 2 GB
• Includes two 250 MHz x1/x10 probes rated for CAT II 300 V

Applications

• Industrial control system troubleshooting and maintenance
• Power system analysis and monitoring
• Electronic design and PCB verification
• Field service and on-site equipment diagnosis
