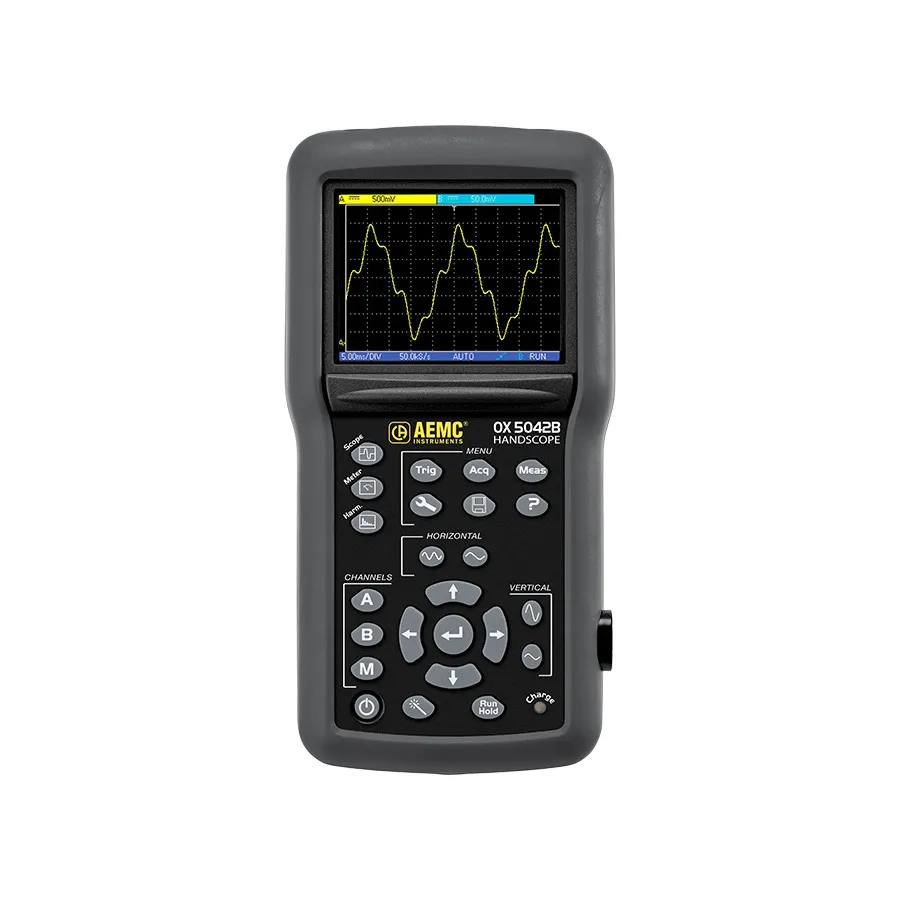

AEMC OX 5042B w/MN379T Kit Handheld Oscilloscope

Overview

The AEMC OX 5042B is a portable handheld oscilloscope designed for field measurements and maintenance work. This shockproof, IP54-rated instrument combines three measuring tools in one compact unit: a 2-channel oscilloscope, a 2-channel multimeter, and a 2-channel harmonic analyzer. With its 3.5-inch color display and ergonomic design, it is suitable for technicians and engineers who need reliable field instrumentation.

Key Features

• 2 fully isolated channels with 40 MHz bandwidth and 2 GS/s sampling rate
• Vertical sensitivity from 5 mV to 200 V/div
• 8000-count multimeter with power measurements
• 2-channel harmonic analyzer up to the 31st harmonic (40–450 Hz fundamental)
• 3.5-inch color display with LED backlighting
• IP54 shockproof portable design
• 2 MB internal storage for data recording
• USB SCPI protocol for remote control and software integration

Applications

• Field diagnostics and troubleshooting
• Power quality analysis and harmonic measurement
• General electrical measurements and maintenance
• Laboratory and bench testing

Included Accessories

• Protective field case (IP67)
• 10:1 600 V/BNC-M probe
• 2 color-coded 10 ft. test leads with alligator clips
• AC Current Probe Model MN379T (5 A / 100 A)
• MiniFlex 3000-24-1-1 flexible current probe (3000 A)
• 6 rechargeable 1.2 V NiMH batteries
• USB cable and driver software
• Quick start guide and user manual
