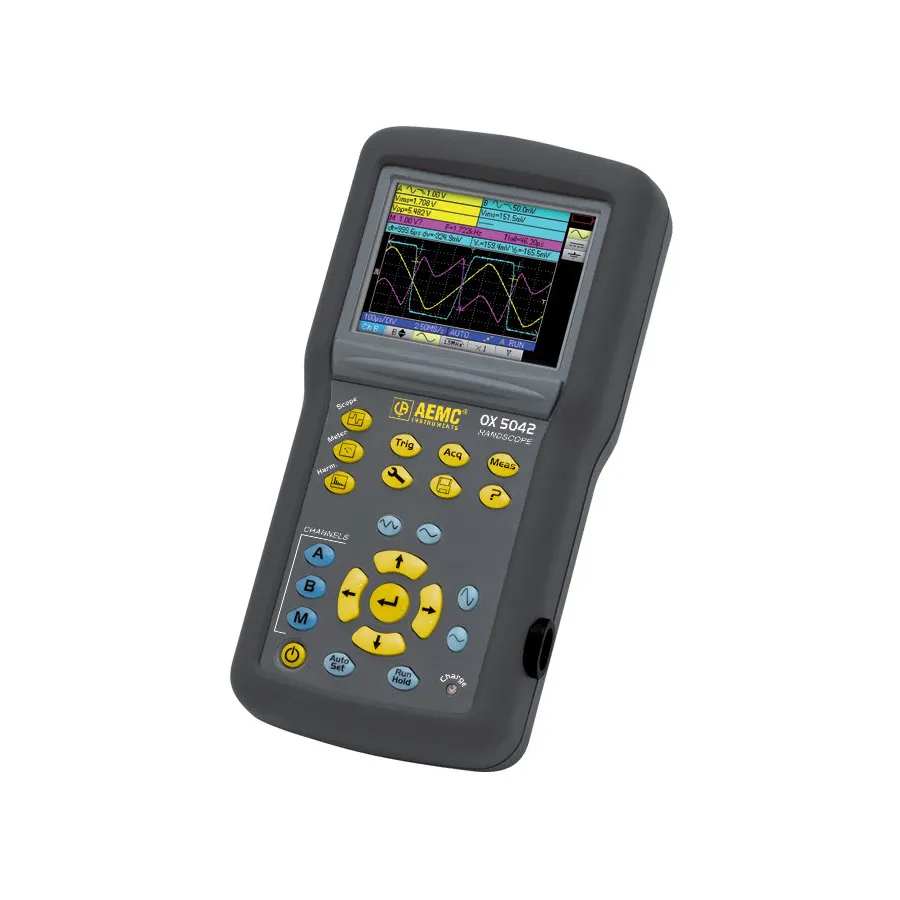

AEMC OX 5042 w/MN251T Kit Handheld Oscilloscope

Overview

The AEMC OX 5042 w/MN251T Kit is a portable, handheld oscilloscope designed for field measurements and electrical diagnostics. This compact, shockproof instrument (IP54-rated) combines three instruments in one: a 2-channel 40MHz oscilloscope, an 8000-count multimeter with power measurements, and a harmonic analyzer. The 3.5" color LCD screen with LED backlighting provides clear data display, and integrated multilingual help screens support ease of use in diverse work environments.

Key Features

• 2 fully isolated channels with 600V CAT III rating
• 40MHz oscilloscope bandwidth with 5mV to 200V/div vertical sensitivity
• 8000-count multimeter with power measurements
• Harmonic analyzer up to 31st harmonic (40Hz to 450Hz fundamental)
• 2MB data storage with graphic recording capability (up to 2700 measurements)
• Isolated USB communication with SCPI protocol for remote programming
• 3.5" color LCD screen with LED backlighting
• IP54 shockproof design for portable field use
• AC Current Probe Model MN251T (200A, 1mV/A) included
• MiniFlex Sensor 3000-24-1-1 (3000A, 1mV/A) included
• 3-year warranty with Eco-Design approach

Applications

• Field troubleshooting and diagnostics of electrical systems
• Power quality analysis with harmonic measurement
• Portable equipment testing and commissioning
• AC current measurement with integrated current probe

Included Accessories

• Meter and field case
• US wall plug and USB cable
• Set of 2 color-coded 10 ft leads (red/black)
• Set of 2 color-coded alligator clips (red/black)
• Set of 2 color-coded probes (red/black)
• BNC adapter
• Probe 10:1 600V BNC male
• AC Current Probe Model MN251T
• MiniFlex Sensor 3000-24-1-1
• 1.2V NiMH rechargeable batteries
• Quick Start guide and USB drive with software and user manual
