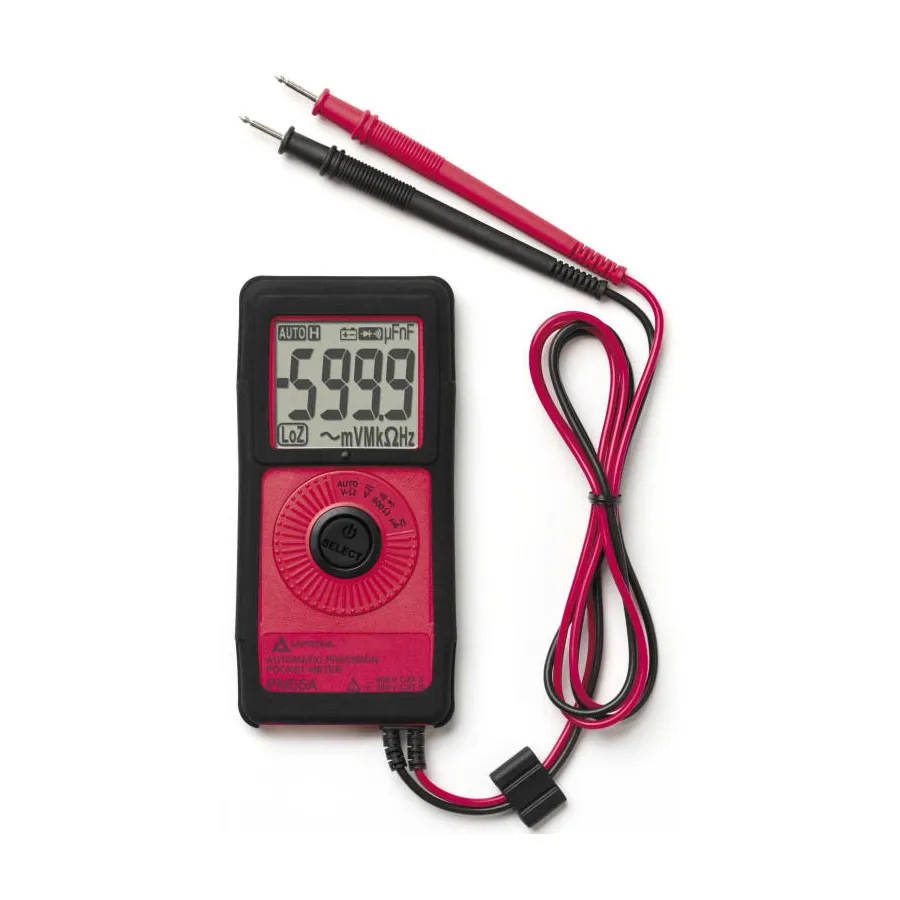

Amprobe PM55A Pocket Multimeter
Request a quote
Compact pocket multimeter measuring AC/DC voltage to 600V and AC/DC current to 2000μA with built-in VolTect non-contact voltage detection.
Product details
| Model | PM55A |
| Manufacturer | Amprobe |
| Category | Handheld Multimeters |
| Availability | Made to order |
Description
Overview
The Amprobe PM55A is a pocket-sized multimeter designed for portability and performance. Measuring less than 3 oz and only 3/8″ thick, it offers AC and DC voltage measurement to 600V, AC and DC current to 2000μA, resistance to 6 Megohm, capacitance to 2000μF, and frequency to 30kHz. The meter also includes diode test and continuity testing with audible beeper.
Key Features
- AutoTect technology automatically selects between AC voltage, DC voltage, or resistance measurement based on test point
- VolTect non-contact voltage detection for safe AC voltage sensing
- Fully auto ranging across nine measurement functions
- Oversized digital display with large digits and unit icons for easy reading
- Compact pocket design with full functionality despite small size
- Safety certified: CAT III 300V, CAT II 600V, UL listed
- Powered by standard CR2032 button battery with automatic power-off
Applications
- General electrical troubleshooting and testing
- HVAC system maintenance and diagnostics
- Appliance repair and diagnostics
- Field electrical work where portability is essential
Specifications
| True RMS | No |
| Display Digits | 3.83 |
| Series | PM Series |
| Alternate Product Number | 2727721 |
| AC Voltage | 600 V |
| Current | 0.002 A |
| DC Voltage | 600 V |
| Frequency Range | 0.01-30 kHz |
| Resistance Range | 0.6-6000 kΩ |
| Safety Rating | CAT2 | CAT3 |
| Special Features | Auto Ranging, Continuity Beeper, Non-Contact Voltage Detection, Diode Test |
