Amprobe 37XR-A Handheld Multimeter
Request a quote
Amprobe 37XR-A is a True-rms digital multimeter with 4.75-digit display, auto-ranging, and component/logic testing for bench and field troubleshooting.
Product details
| Model | 37XR-A |
| Manufacturer | Amprobe |
| Category | Handheld Multimeters |
| Availability | Made to order |
Description
Overview

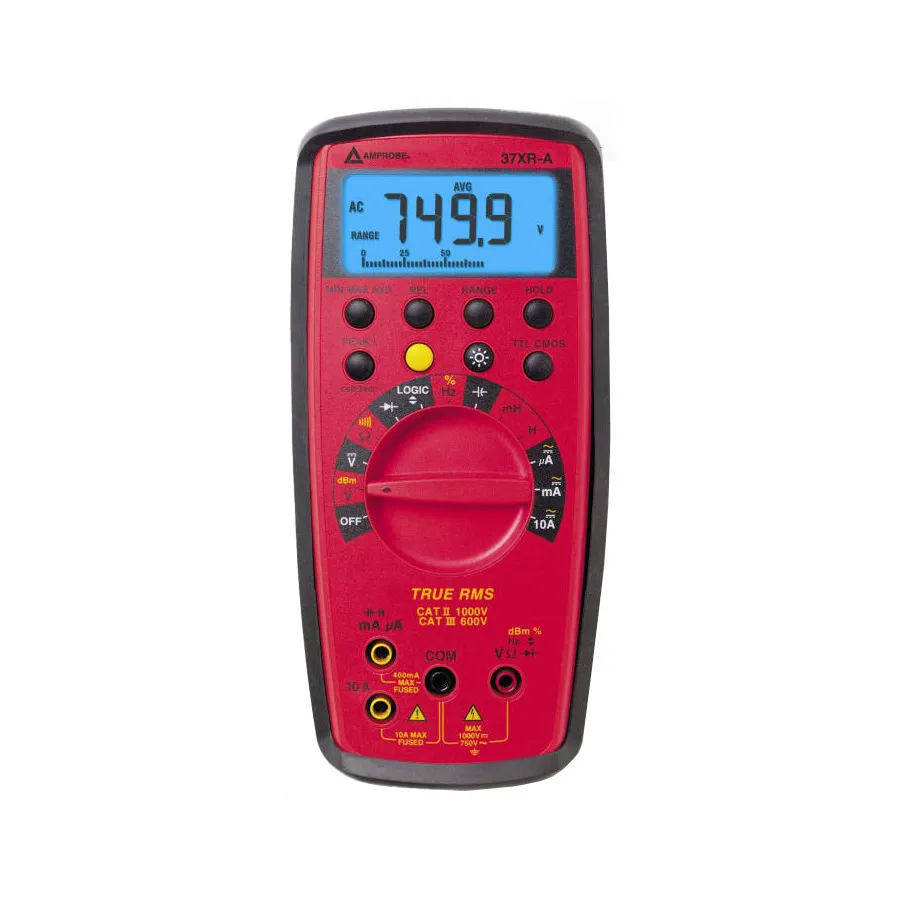

The Amprobe 37XR-A is a digital multimeter designed for professional technicians and hobbyists. It combines True-rms AC/DC measurement with component testing and logic probe functions, making it ideal for troubleshooting electronics at the bench or in the field. The meter features a 4.75-digit display with analog bar graph and includes a Magne-Grip holster with magnetic hanging strap for convenient carrying and hands-free mounting.
Key Features
- True-rms AC/DC voltage and current measurement up to 1000V and 10A
- 4.75-digit display with 10,000 counts and 41-segment analog bar graph
- Auto-ranging for automatic range selection
- Capacitance measurement to 400 μF
- Inductance measurement to 40 H
- Frequency measurement to 40 MHz
- Logic testing to 20 MHz
- Min/max, average, relative, peak, and data hold functions
- Backlit display for low-light operation
- Continuity beeper and input warning tone
- Auto power off to conserve battery
- Magne-Grip holster with magnetic hanging strap
Applications
- Electronics troubleshooting and diagnostics
- Component testing and verification
- Logic circuit testing and analysis
- Field service and maintenance work
Included Accessories
- Test leads
- Eight C batteries
- AC adaptor
- Heavy duty carrying case
Specifications
| True RMS | Yes |
| Display Digits | 4.75 |
| Series | XR-A Series |
| Alternate Product Number | 2727808 |
| AC Voltage | 750 V |
| Current | 10 A |
| DC Voltage | 1000 V |
| Frequency Range | 0.1-10000 kHz |
| Resistance Range | 1-40000 kΩ |
| Safety Rating | CAT2 | CAT3 |
| Special Features | Auto Ranging, Continuity Beeper, Component Logic Test, Diode Test, Backlight |
