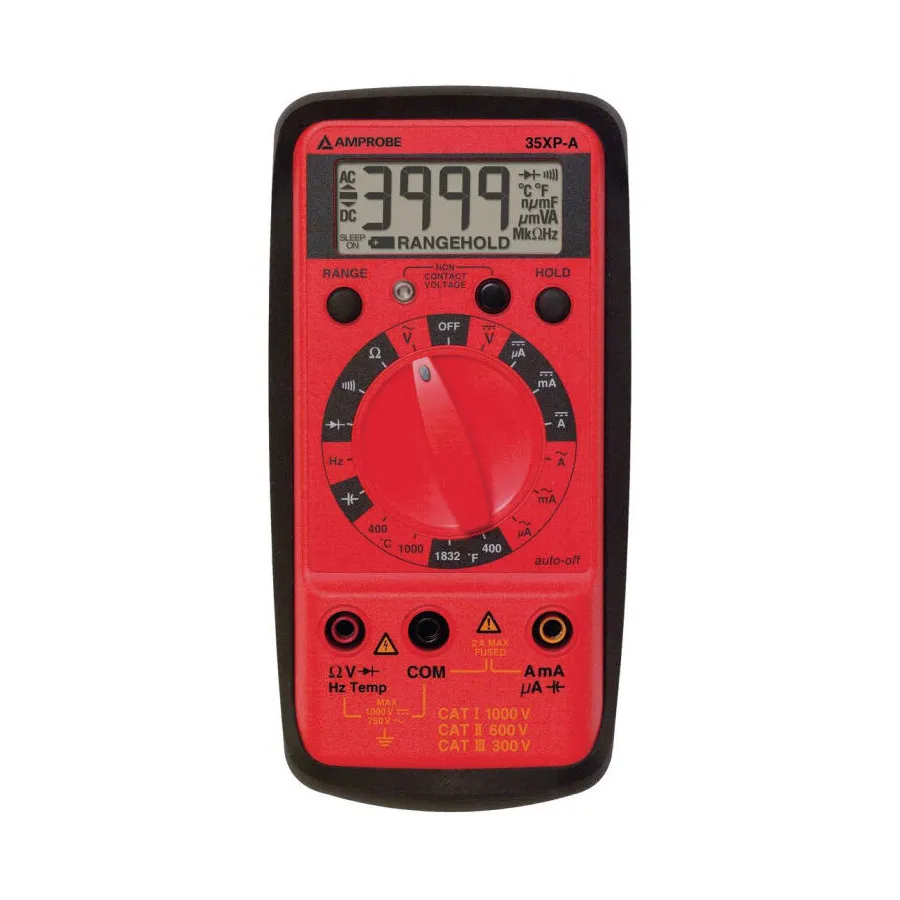

Amprobe 35XP-A Handheld Digital Multimeter
Request a quote
Amprobe 35XP-A is a compact digital multimeter with temperature, frequency, and capacitance measurement, rated for 600V/2A, ideal for HVAC and plant maintenance.
Product details
| Model | 35XP-A |
| Manufacturer | Amprobe |
| Category | Handheld Multimeters |
| Availability | Made to order |
Description
Overview
The Amprobe 35XP-A is a compact digital multimeter designed for HVAC and plant maintenance technicians. It combines essential measurement functions with specialized features for field diagnostics, including temperature measurement up to 1000°C and flame sensor testing capabilities.
Key Features
- Temperature measurement to 1000°C/1832°F with included type-K thermocouple
- 600V AC/600V DC – highest voltage rating in this meter class
- Capacitance measurement for motor run/start testing
- 0.1μA resolution for sensitive applications like flame sensor testing
- Frequency measurement to 1 MHz
- Resistance measurement to 40 MΩ
- Data hold function to freeze display readings
- VolTect™ non-contact voltage detection (70V AC to 600V AC)
- Magne-Grip™ magnetic holster for hands-free operation
- Continuity beeper
Applications
- HVAC system maintenance and diagnostics
- Plant and facility electrical maintenance
- Motor testing and flame sensor diagnostics
- Electrical troubleshooting and circuit testing
Included Accessories
- Type-K thermocouple
- Magne-Grip™ holster
Specifications
| True RMS | No |
| Display Digits | 3.75 |
| Series | XP Series |
| Alternate Product Number | 2727849 |
| AC Voltage | 600 V |
| Current | 2 A |
| DC Voltage | 600 V |
| Frequency Range | 4-1000 kHz |
| Resistance Range | 40-40000 kΩ |
| Safety Rating | CAT2 | CAT3 |
| Special Features | Continuity Beeper, Non-Contact Voltage Detection, Diode Test |
