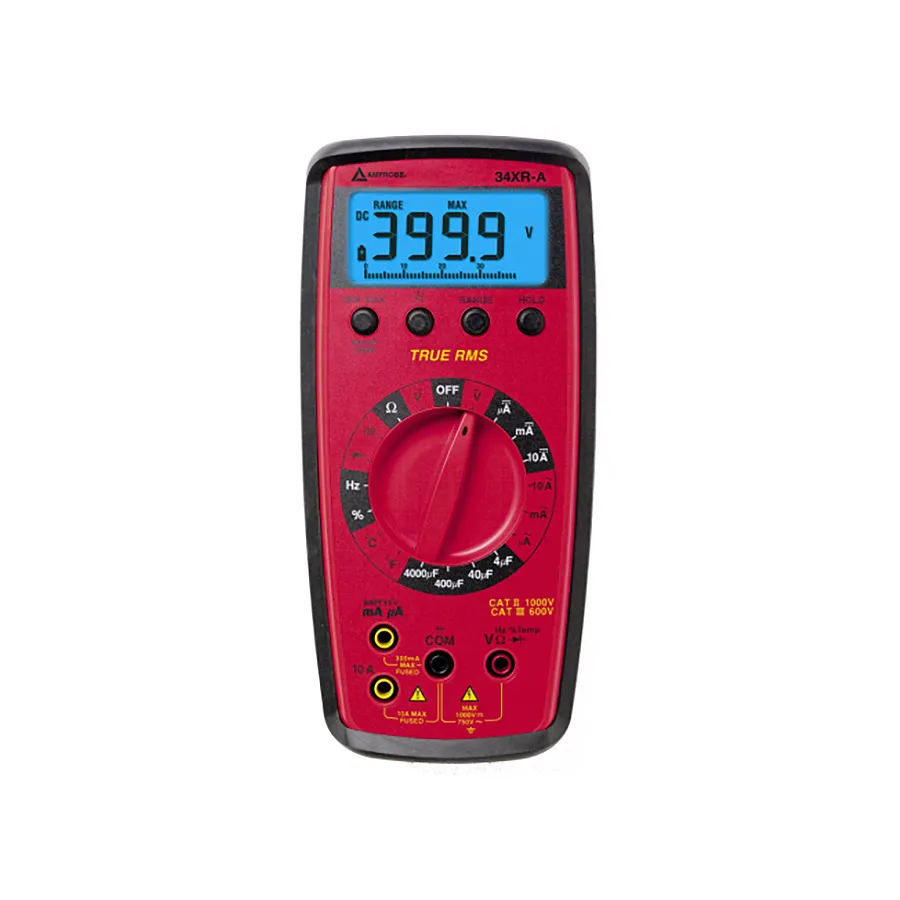

Amprobe 34XR-A TRMS Digital Multimeter
Request a quote
Amprobe 34XR-A is a True-rms digital multimeter with autoranging, temperature measurement, and backlight for field service technicians.
Product details
| Model | 34XR-A |
| Manufacturer | Amprobe |
| Category | Handheld Multimeters |
| Availability | Made to order |
Description
Overview
The Amprobe 34XR-A is a True-rms digital multimeter designed for contractors and field service technicians. It features a 3.75-digit LCD display with 41-segment analog bar graph, autoranging capability, and temperature measurement functionality for comprehensive electrical troubleshooting in the field.
Key Features
- True-rms measurement technology
- Autoranging with 3.75-digit LCD display (3999 counts)
- 41-segment analog bar graph
- Temperature and backlight functionality
- Min/max and data hold modes
- Range lock function
- Auto power-off to conserve battery
- Magne-Grip™ holster with magnetic hanging strap
Applications
- Field electrical troubleshooting and diagnostics
- HVAC system maintenance and testing
- General electrical measurements
Specifications
| True RMS | Yes |
| Display Digits | 3.75 |
| Series | XR-A Series |
| Alternate Product Number | 2727795 |
| AC Voltage | 750 V |
| Current | 10 A |
| DC Voltage | 1000 V |
| Frequency Range | 4-40000 kHz |
| Resistance Range | 0.4-40000 kΩ |
| Safety Rating | CAT2 | CAT3 |
| Special Features | Auto Ranging, Continuity Beeper, Diode Test, Backlight |
