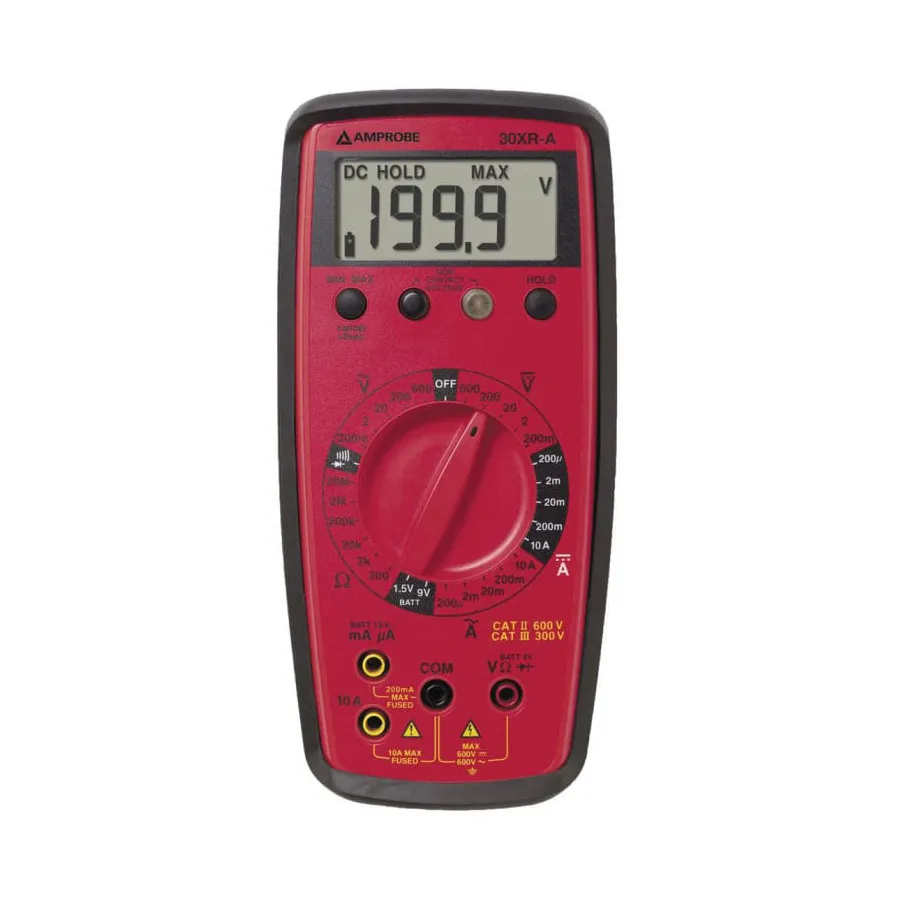

Amprobe 30XR-A AC/DC Handheld Multimeter
Request a quote
Amprobe 30XR-A is an AC/DC handheld multimeter with non-contact voltage detection (VolTect™), 500V/10A measurement capability, and min/max data hold function.
Product details
| Model | 30XR-A |
| Manufacturer | Amprobe |
| Category | Handheld Multimeters |
| Availability | Made to order |
Description
Overview
The Amprobe 30XR-A is a handheld AC/DC digital multimeter featuring Voltect™ non-contact voltage detection technology. Designed for field service and troubleshooting, it provides a comprehensive range of electrical measurements with a 3-1/2 digit LCD display, manual ranging, and practical features for professional use.
Key Features
- Non-contact voltage detection (VolTect™) for safe, quick voltage presence verification
- AC and DC voltage measurement up to 500V
- AC and DC current measurement up to 10A
- Resistance measurement with multiple ranges
- Continuity testing and diode test function
- 3-1/2 digit LCD display (1999 counts) with 2.5 readings per second update rate
- Min/max and data hold functions for capturing measurements
- Manual ranging for precise measurement control
- Separate battery and fuse access door for easy maintenance
Applications
- Electrical system diagnostics and troubleshooting
- HVAC system testing and maintenance
- Field service and on-site measurements
Specifications
| True RMS | No |
| Display Digits | 3.50 |
| Series | XR-A Series |
| Alternate Product Number | 2727774 |
| AC Voltage | 500 V |
| Current | 10 A |
| DC Voltage | 500 V |
| Frequency Range | 45-500 Hz |
| Resistance Range | 0.2-20000 kΩ |
| Safety Rating | CAT3 | CAT4 |
| Special Features | Manual Ranging, Diode Test, Continuity Beeper, Non-Contact Voltage Detection |
