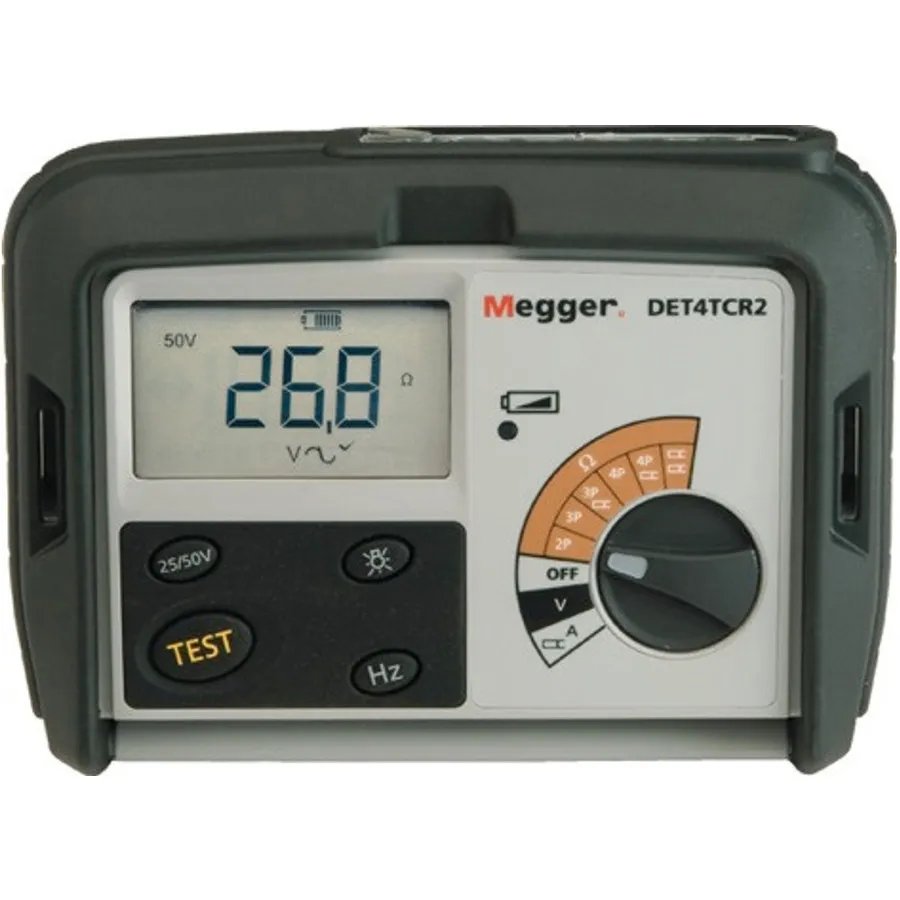

Megger DET4TCR2 + Clamps Ground Resistance Tester
Request a quote
Megger DET4TCR2 + Clamps set includes a ground resistance tester with clamp attachment for soil resistivity testing and non-invasive measurements up to 200 kΩ.
Product details
| Model | DET4TCR2 + Clamps |
| Manufacturer | Megger |
| Category | Ground Resistance Testers |
| Availability | Made to order |
Description
Overview
The Megger DET4TCR2 with integrated clamps is designed for ground resistance testing and soil resistivity measurements. The addition of clamps enables non-invasive testing methods without requiring the insertion of electrodes into the ground, making it ideal for testing in locations where traditional probe installation is impractical.
Key Features
- Clamp-on testing capability for non-invasive measurements
- Wide measurement range: 0.01 Ω to 200 kΩ
- 2-point, 3-point, and 4-point testing modes
- Soil resistivity testing with clamp attachment
- 25V and 50V selectable testing voltage
- Ground noise measurement: 1V to 100V
- Ground current measurement: 1 mA to 20 A
- IP54 rated enclosure for outdoor use
- Bright backlit LCD display for field visibility
Applications
- Soil resistivity surveys and mapping
- Non-invasive ground system testing
- Electrical safety commissioning
- Foundation and earth electrode testing without excavation
- Industrial site characterization
Specifications
| Series | DET4 Series |
| Alternate Product Number | 1000-366 |
