Ground Resistance Testers

Ground resistance testers measure the resistance of earth electrodes, grounding grids, and bonding conductors to confirm they meet required safety and operational thresholds. A reliable grounding system is critical for personnel safety, equipment protection, and correct operation of protective relays and surge protection devices. Standards such as IEEE 142, IEC 60364, NFPA 780, and NEC specify maximum acceptable ground resistance values for various installation types.

Testing methods include the three-pole fall-of-potential method, two-pole testing, selective clamp testing, and stakeless clamp-on measurement for grids with multiple parallel ground rods. Clamp-on models such as the Megger 1000-324 and the Fluke 1623 GEO series allow non-invasive testing without disconnecting the grounding system from service.

Typical Applications

Verifying grounding system integrity at electrical substations and utility infrastructure
Testing lightning protection ground electrodes per IEC 62305
Commissioning and maintenance of telecom tower and data center grounding systems
Industrial plant ground loop resistance measurement
Protective grounding verification for personnel safety compliance on construction and industrial sites

Popular Brands

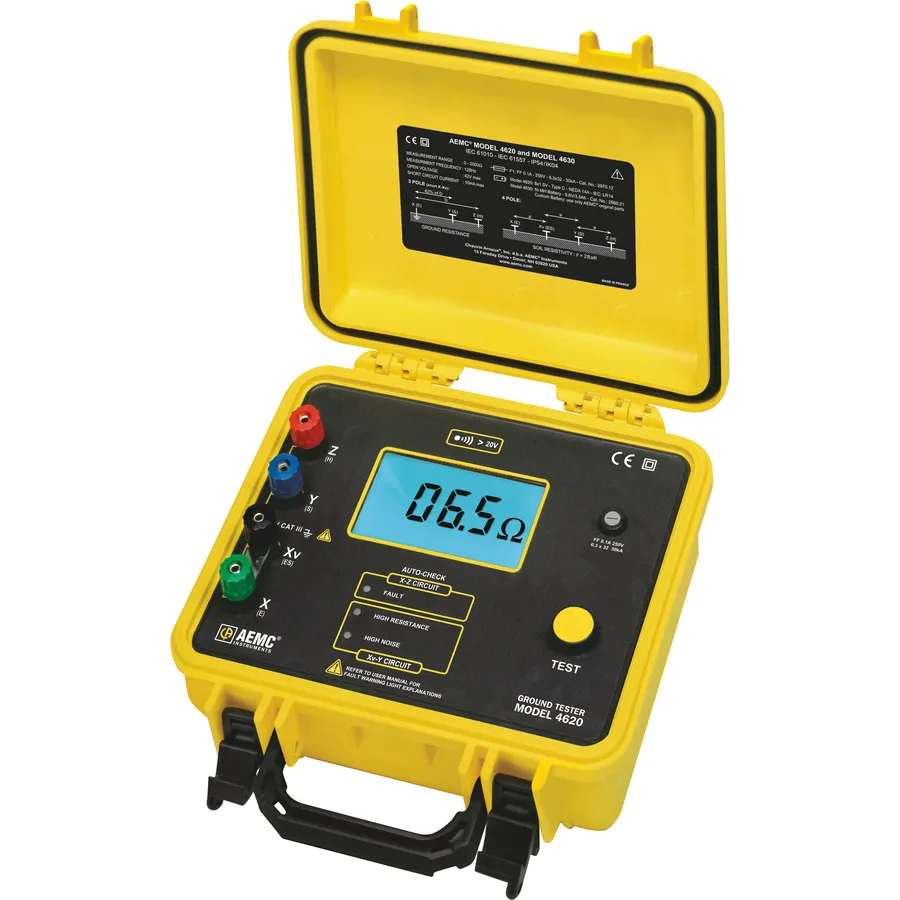

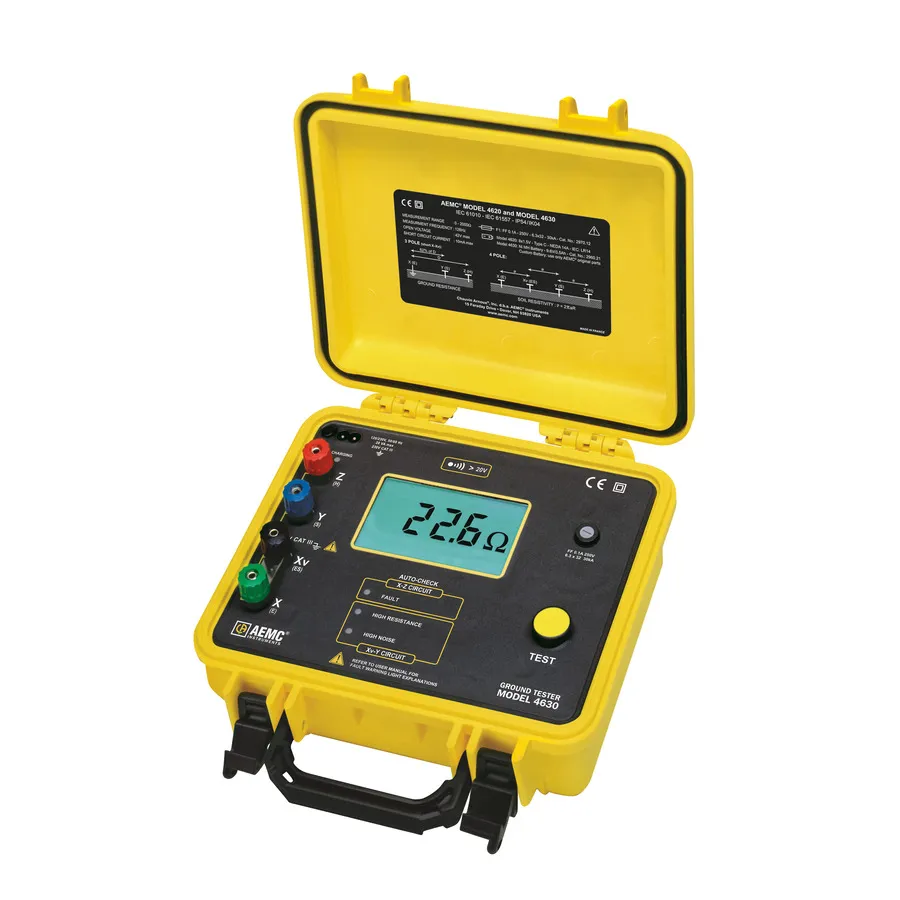

Megger and Fluke dominate this category. Megger offers a comprehensive range from clamp-on models to advanced four-pole earth testers. Fluke's GEO series (1623 and 1625) provides versatile field instruments with selective testing capability. AEMC Instruments and Kyoritsu also produce widely used ground resistance testers for electrical maintenance and construction applications.
