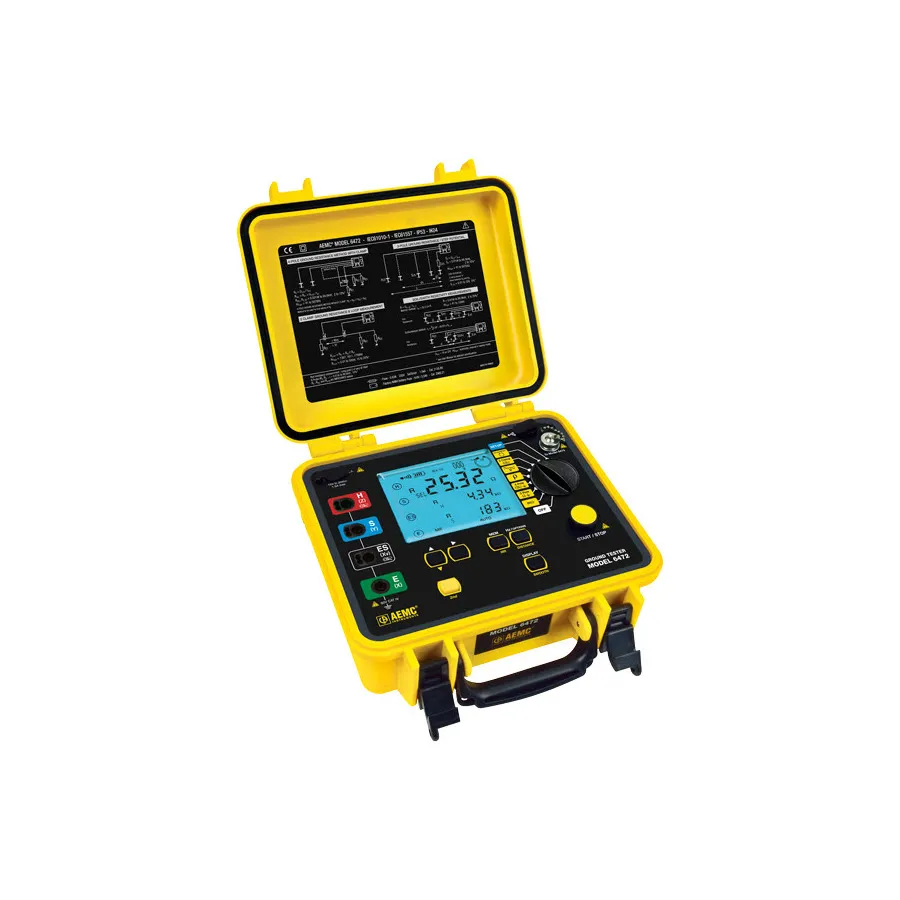

AEMC 6472 Kit-300ft Ground Resistance Test Kit
Request a quote
AEMC 6472 Kit-300ft ground resistance tester with 2-clamp measurement method, 4-point soil resistivity assessment, and storage for 512 test results.
Product details
| Model | 6472 Kit-300ft |
| Manufacturer | AEMC |
| Category | Ground Resistance Testers |
| Availability | Made to order |
Description
Overview
The AEMC 6472 is a portable digital ground resistance tester designed to measure bond resistance, ground resistance with and without clamps, soil resistivity, earth coupling, and step and touch potential. It features Ground Integrity measurement and can perform testing using the 2-clamp method without requiring auxiliary rods.
Key Features
- Ground Integrity Measurement
- Ground Resistance testing using the 2-clamp method (no auxiliary rods needed)
- 2- and 4-Point Bond Resistance/Continuity measurement with automatic polarity reversal
- 3-Point Fall-of-Potential measurement with manual or automatic frequency selection
- 4-Point Soil Resistivity measurement with automatic calculation and Wenner or Schlumberger test method selection
- 3-Point Earth Coupling measurement
- Manual and Automatic frequency scan from 41 to 5078 Hz
- Selectable test voltage of 16 or 32V up to 250mA of test current
- Stores up to 512 complete test results in internal memory
- Automatic recognition of electrode connections and resistance values
- Optically isolated USB communication cable included
- Rechargeable NiMH batteries with wall charger or vehicle power options
- IP53 rated dustproof and water-resistant field case
- IEC 61557 parts 4 and 5 compliant
- DataView software for setup, data retrieval, analysis, and report generation
Applications
- Ground system testing and verification
- Electrical grounding system assessment
- Power transmission and distribution system testing
- Soil resistivity evaluation
- Bonding continuity verification
- Tower grounding assessment (with optional GroundFlex Adapter)
Included Accessories
- Two 300 ft color-coded leads on spools (red/blue)
- Two 100 ft color-coded leads (hand-tied, green/black)
- Two 5 ft color-coded leads (red/blue)
- Four T-shaped auxiliary ground electrodes
- Set of 5 spaded lugs
- 100 ft tape measure
- Carrying bags for meter and kit
- 110/240V power adapter with US power cord
- Optically isolated USB cable
- Rechargeable NiMH battery
- USB stick with DataView software
- Ground tester workbook and user manual
Specifications
| Series | 6400 Series |
| Alternate Product Number | 2135.53, 6472 |
