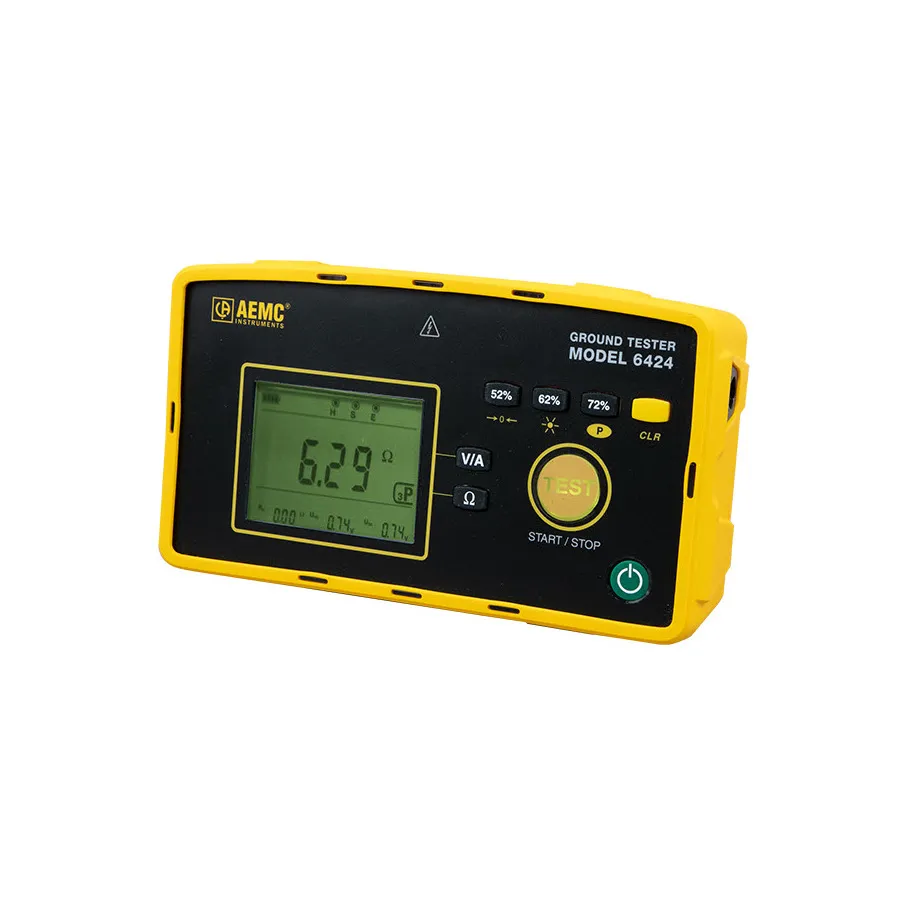

AEMC 6424 Kit-300 ft Ground Resistance Tester

Overview

The AEMC 6424 is a digital ground resistance tester that performs both 2-pole and 3-pole ground resistance measurements. This auto-ranging direct reading tester is designed for ease of use with simple one-button operation and a large backlit LCD display. The kit includes 300 ft color-coded leads on spools, making it suitable for testing in various terrain conditions.

Key Features

• Auto-ranging measurement system with optimum range selection
• 2-pole resistance measurement up to 50 kΩ
• 3-pole ground resistance measurement up to 50 kΩ for highly resistive terrain
• Large backlit LCD display for clear visibility in all lighting conditions
• Automatic hold function retains last stable measurement
• Automatic test frequency selection between 128 and 256 Hz
• Built-in test lead compensation for improved accuracy on low resistance measurements
• CAT IV 600V rated for high operator safety
• AC/DC voltage measurement capability
• Leakage current measurement from 0.5 mA to 60 A
• Battery recharging via AC adapter, USB, or vehicle DC port
• Color-coded leads and terminals for fast, error-free connection
• Water-resistant rugged case

Applications

• Industrial grounding system testing and verification
• Electrical safety compliance and maintenance
• Lightning protection system testing
• Hazardous voltage detection

Included Accessories

• 300 ft color-coded leads on spools (red/blue)
• 100 ft color-coded leads hand-tied (green/black)
• 5 ft color-coded leads (red/blue)
• Four 14.5" T-shaped auxiliary ground electrodes
• Set of 5 spaded lugs
• 100 ft tape measure
• Carrying bag
• User manual
