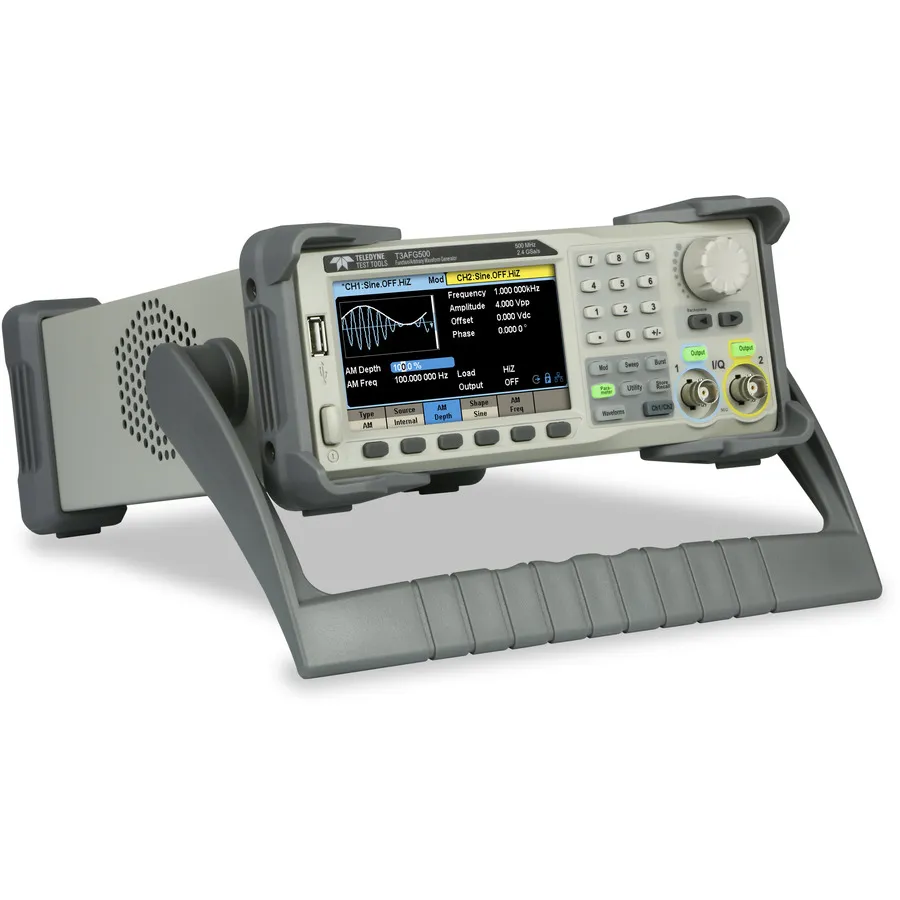

Teledyne LeCroy T3AFG200 Arbitrary Function Generator
Request a quote
Teledyne LeCroy T3AFG200 is a 200 MHz dual-channel arbitrary function generator with 2.4 GS/s sampling rate, 20 Mpts memory, 16-bit resolution, and advanced modulation capabilities.
Product details
| Model | T3AFG200 |
| Manufacturer | Teledyne LeCroy |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3AFG200 is a dual-channel arbitrary function generator engineered for high-frequency test and measurement applications. With 200 MHz maximum bandwidth, 2.4 GS/s sampling rate, and 20 Mpts of deep memory per channel, it delivers high-fidelity waveforms with 16-bit vertical resolution. The proprietary Arbitrary & Pulse techniques provide superior signal generation performance for arbitrary, square, and pulse waveforms.
Key Features
- 200 MHz maximum bandwidth with 2.4 GS/s sampling rate
- 20 Mpts deep memory per channel for complex waveforms
- 16-bit vertical resolution for precise signal generation
- Dual-channel simultaneous output capability
- Multiple modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst, and PSK
- Built-in and user-defined arbitrary waveforms
Applications
- RF and microwave circuit design and testing
- High-speed signal integrity analysis
- Communications system validation
- Signal processing and electronics research
Specifications
| Frequency | 200 MHz |
| Sampling Rate | 2.4 GS/s |
| Number of Channels | 2 Channel |
| Memory | 20 Mpts |
| Series | T3AFG Series |
