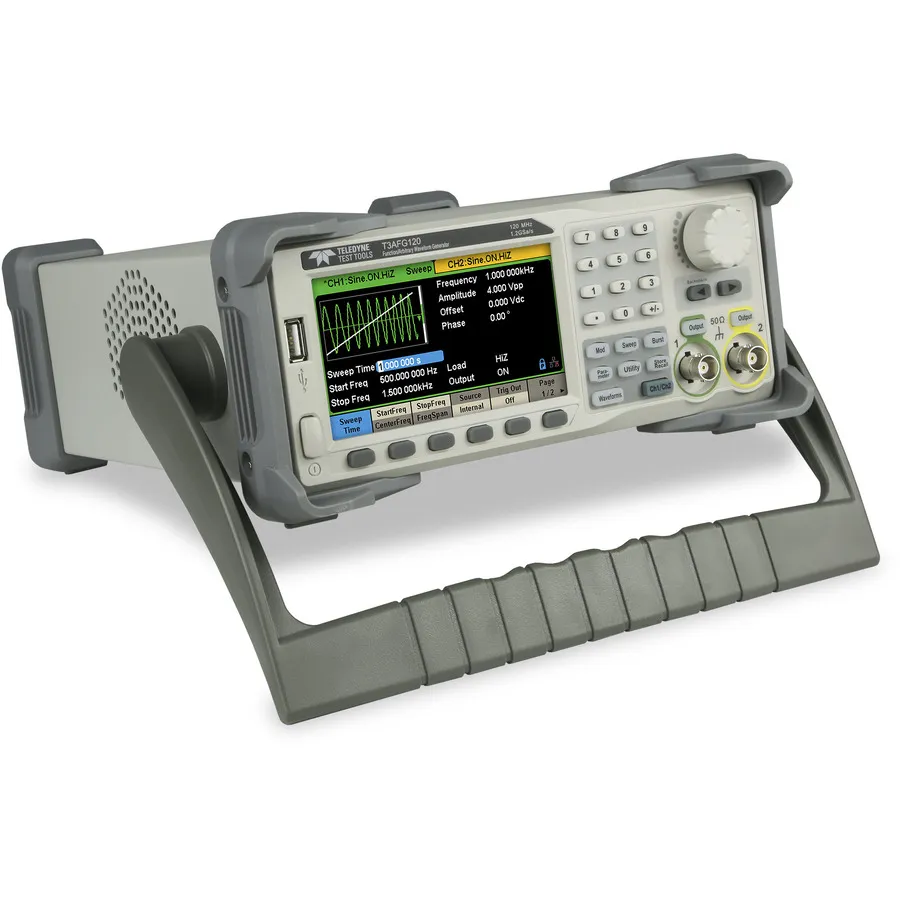

Teledyne LeCroy T3AFG120 Arbitrary Waveform Generator
Request a quote
Teledyne LeCroy T3AFG120 dual-channel arbitrary waveform generator with 120 MHz bandwidth, 1.2 GS/s sampling rate, 8 Mpts memory, 16-bit resolution, and advanced modulation.
Product details
| Model | T3AFG120 |
| Manufacturer | Teledyne LeCroy |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3AFG120 is a dual-channel arbitrary waveform and function generator designed for complex signal generation in research, design, and testing applications. It combines advanced arbitrary and pulse generation capabilities with traditional function generator features, delivering high-fidelity, low-jitter signals that exceed the performance of standard DDS generators.
Key Features
- Dual-channel operation
- 120 MHz maximum bandwidth
- 1.2 GS/s sampling rate
- 8 Mpts deep memory per channel
- 16-bit vertical resolution
- Proprietary Arbitrary & Pulse techniques for superior waveform quality
- Multiple modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst, PSK
- Built-in arbitrary waveforms library
- User-defined waveform capability
Applications
- Analog circuit design and verification
- Frequency response and distortion testing
- High-fidelity arbitrary waveform generation
- Modulation and demodulation testing
- Research and development signal synthesis
Specifications
| Frequency | 120 MHz |
| Sampling Rate | 1.2 GS/s |
| Number of Channels | 2 Channel |
| Memory | 8 Mpts |
| Series | T3AFG Series |
