Tektronix AFG31252 Arbitrary Function Generator

Overview

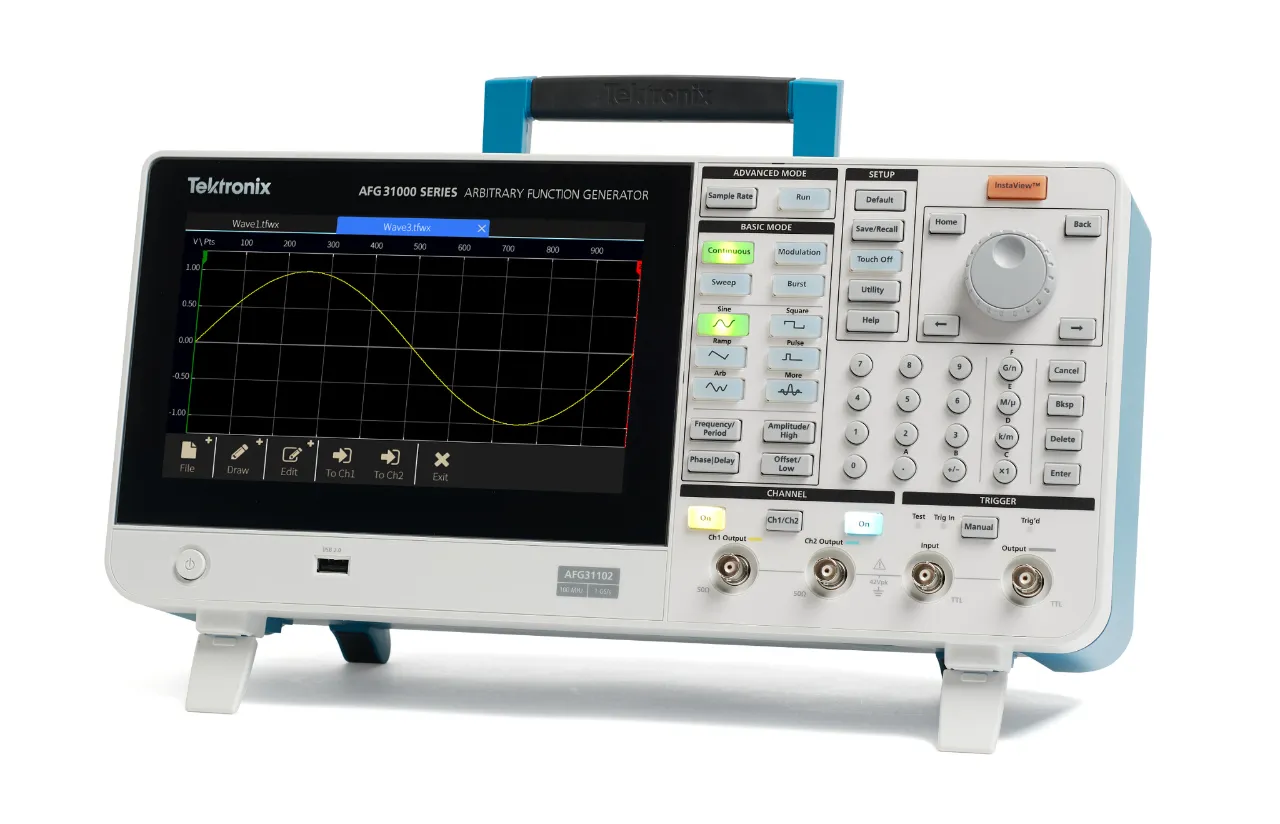

The Tektronix AFG31252 is a high-performance, 2-channel arbitrary function generator with 250 MHz frequency capability and advanced waveform generation. Featuring a 9-inch capacitive touchscreen interface, real-time waveform monitoring (InstaView), and built-in arbitrary waveform creation tools (ArbBuilder), the AFG31252 simplifies complex signal generation tasks for researchers and engineers. It supports both basic function generation and advanced waveform sequencing for complex test scenarios.

Key Features

• 250 MHz bandwidth, 2-channel output
• Maximum sample rate: 2 GS/s with 14-bit vertical resolution
• Memory depth: 16 MSa/ch for extended waveform capture
• Output range: 1 mVp-p to 5 Vp-p into 50 ohms
• 9-inch capacitive touchscreen with smartphone-like interface
• InstaView technology monitors waveforms at the device under test in real time
• Programmable waveform sequencing with up to 256 steps
• Built-in ArbBuilder tool for waveform creation and editing without a PC
• Multi-unit synchronization for simplified multi-channel applications
• Output overvoltage and overcurrent protection
• TekBench software compatibility for setup, control, and analysis
• 3-year warranty

Applications

• Analog circuit characterization and filter/amplifier response testing
• Replication of real-world signals captured from oscilloscopes
• Function verification and performance characterization
• Clock and system synchronization
• Pulse generation for power device driving
• Advanced research and education
• Embedded circuit design and test
• General-purpose signal generation

Included Accessories

• Compliance, installation, and safety instructions
• 012-1732-xx 3-foot BNC shielded cable
• 174-4401-xx 3-foot USB A to B cable
• Power cord
• NIST-traceable calibration certificate
